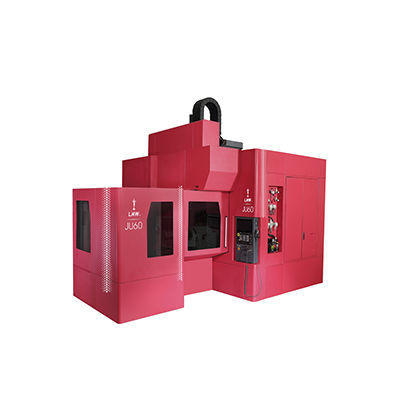

3-axis CNC milling center JU 60verticalBT 30cutting
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 30
- Associated functions
- cutting
- X travel
500 mm
(19.69 in)- Y travel
400 mm
(15.75 in)- Z travel
320 mm
(12.6 in)- Work feed X-axis
48,000 mm/min
(31.5 in/s)- Work feed Y-axis
48,000 mm/min
(31.5 in/s)- Table load capacity
250 kg
(551 lb)- Tool weight (max)
3 kg
(6.6 lb)- Tool-changing time
2.5 s
- Weight
2,500 kg
(5,511.56 lb)- Overall length
1,630 mm
(64.2 in)- Overall width
1,980 mm
(78 in)
Description
STROKE
Distance from spindle nose to table top - mm - 150 – 470
TABLE
Table Size - mm - 600 ×350
No of T Slots × Pitch - nos. × mm - 3 x 14 x 125
FEED SYSTEM
Rapid traverse rate -Z Axis - m/min - 48
Cutting feed rate - m/min - 10
AUTOMATIC TOOL CHANGER
No. of tools - nos. - 210
Max. tool diameter with adjacent tool - mm - 100
Max. Tool length - mm - 250
CNC SYSTEM
Controller - Type - Mitsubishi/Fanuc
