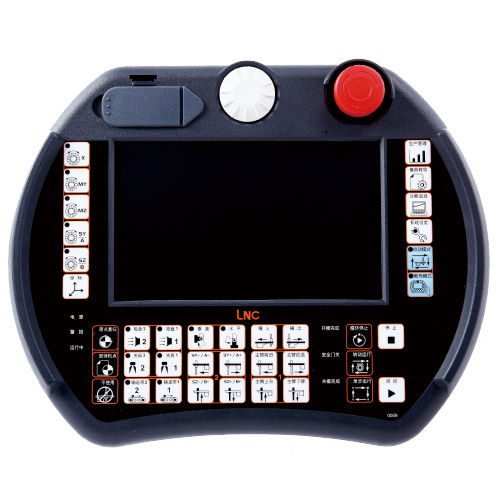

RS8800 series standard controller of spray coating machine, which apply to spray coating industry, and it is divided into fixing spray and tracking coating. IP65 level protection is provided, which increases the durability design such as waterproof, Anti-shock and dustproof. In addition, built-in MPG is offered for meeting requirements of easier operation and higher safety.
Hardware
Storage: SD Card (1G)
Monitor: 7"TFT LCD Touch Screen
Operation Panel: 40 buttons
Emergency Stop: 1
Safety Switch: 2-stage switch (Standard) / 3-stage switch (Optional)
Communication Cord: 8m (Standard) / 5,6 m (Optional)
Knob: For use with software functions
Communication Interface
USB: USB HOST(2.0)
EtherNET: 10BASE-T/ 100BASE-TX
CIO: Expandable with LNC serial communication I/O cards, max: 128 input points/ 128 output points.
Servo Interface
D1: M-II
D2: RTEX
D3: EtherCAT
D5: PULSE
Power Supply
System Power: AC 100V/240V 50/60Hz
I/O Power: DC 24V(above 4A)
