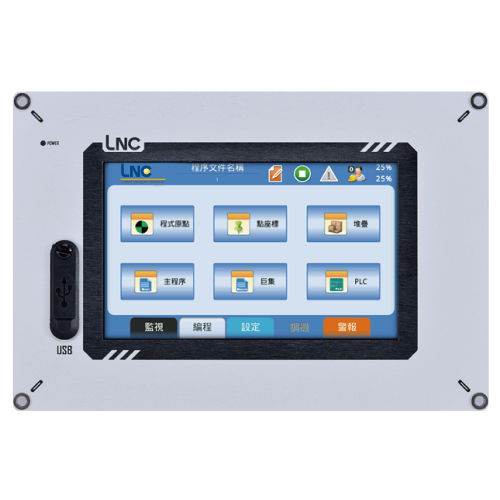

LNC gantry robot control series, standard specification is three-axis control but also provides advanced functions include dual arms, five-axis dual systems and dual channel / dual path to meet high-end applications. According to industrial applications, product series is divided into a variety of product series containing injection molding machine reclaiming robots, lathe loading / unloading robots, punching robots, and automation robots. Furthermore,controllers are built-in with various construction methods to meet practical application requirements, such as stacking arrangement and in-mold labeling, etc. In response to the trend of intelligence, it can also be used with LNC visual system solutions to replace manual operation to achieve automation and intelligent manufacturing.
Hardware
Type: Cartesian Coordinates
Monitor: 7" TFT LCD ; Touch panel
Storage: CF Card ( 1G )
Operation Panel: No
Emergency Stop: No
Safety Switch: No
Teaching Box Line Length: No
Knob: Option
Communication Interface
USB: USB HOST (2.0)
EtherNET: 10BASE-T / 100BASE-TX
CIO: Expandable with LNC serial communication I/O cards, max: 128 input points/ 128 output points.
Servo Interface
D1:M-II: No
D2:RTEX: No
D3:EtherCAT: No
D5:PULSE: Yes
Power Supply
System Power: AC 100V/240V 50/60Hz
I/O Power: DC 24V(above 4A)
Spindel Axis (Max.)
Axis: 4-axis
