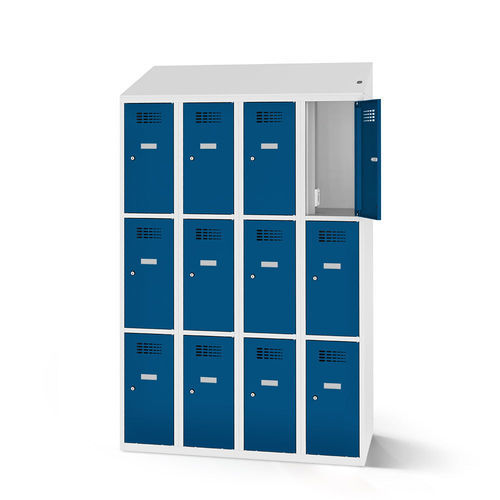

Office storage locker 2180-040300-1201112

for industrial useventilated

Product overview
The LOCKEEL® compartment locker provides secure, ventilated storage for backpacks, bags, jackets and small equipment. Each of the 12 compartments includes an earthed F-type socket (230 V / 16 A) and two USB ports (USB-A and USB-C) for charging mobile devices and small electronics. Suitable for industrial sites, offices, education and leisure facilities requiring individual charging points.

Construction and design
Body and doors are manufactured from 0.5 mm powder-coated steel sheet with smoothly recessed doors and rounded edges. Ventilation holes in each door ensure continuous air circulation inside compartments. The cabinet features a sloping top that houses the electrical components and keeps wiring protected and accessible for maintenance.

Electrical and safety features
The electrical system is installed under the sloping roof and includes a thermal fuse and overvoltage protection. Each compartment is earthed and an LED indicator displays the presence of power. Cable routing is internal to the cabinet to reduce tampering and protect connections.

Key features

• Corpus and doors in 0.5 mm powder-coated steel sheet
• One F-type socket (230 V / 16 A) and two USB ports (USB-A and USB-C) per compartment
• Doors reinforced with integrated profiles and smoothly recessed
• Rubber buffers on doors and strong pivot pins, opening angle 110°

Technical specifications

• Product reference: 2180-040300-1201112_V.447
• Number of compartments / doors: 12
• Charging points: 12 (1 F-type socket + 2 USB ports per compartment)
• Charging connectors: F-type plug (230 V / 16 A), USB-A, USB-C
• Tray height: 56 cm
• Tray width: 30 cm
• Internal dimensions per compartment (HxWxD): 55 x 25 x 48 cm
• Overall dimensions (HxWxD): 200 x 120 x 50 cm
• Material: Powder-coated steel sheet, 0.5 mm
• Weight: 86 kg
• Door opening angle: 110°
• Ventilation: Ventilation holes in doors for airflow
