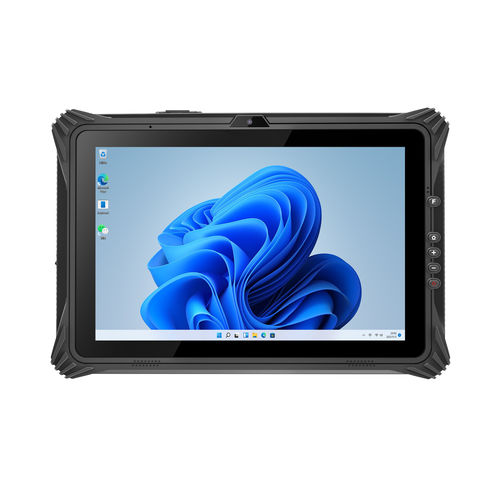

Large 12.2" screen with active digitiser
Intel Core i7-1255U with 16GB of RAM
Tool-free replaceable battery
MIL-STD-810 – IP65
Operating system
• Operating System: Windows 11 Pro
Processors, RAM & OS
• Processor: Intel® Core® i7-1255U
• Graphic processor: GPU Intel® Iris Xe
• RAM: 16GB
• Storage: 128GB (other options available)
• Fingerprint reader
Screen
• 12.2″ IPS protected by a tempered glass pane
• 1920 x 1200
• 650 Nits brightness
• 10-point capacitive touchscreen
• Digitizer with active pen
Connectivity
• Wifi6 802.11 a/b/g/n/ac/ax
• Bluetooth 5.1
• LTE FDD: B1/B3/B7/B8/B20
• LTE-TDD: B40
• WCDMA: B1/B5/B8
• GPS
• NFC
Cameras
• Front 2 MP – Rear 8 MP
Options (Replaces RJ45 port)
• N3680 1D/2D barcode scanner
• RS232 on 9-pin SubD port
• USB 2.0 on Type A port
Ports
• 1X USB Type C 3.0
• 1X USB Type A 3.0
• 1X Micro SD + 1X SIM
• 1X RJ45 Gigabit Ethernet
• 1X Mini HDMI 2.1A
• 1X POGO for docking station
• 1X audio port 3.5mm
• 1X DC IN
Buttons
• 1X power button
• 2X volume buttons
• 1X Home button
• 1X barcode scan button
Power supply
• 7.4V / 6300mAh battery, replaceable without tools
• 7.4V / 700mAh backup battery
• Adapter AC100V~240V, 50 Hz/60 Hz 19 V/3.42 A
Dimensions & Weight
• 339.3 x 230.3 x 26mm
• 1.6Kg
Certificates
• IP65, MIL-STD-810G
• CE, RoHS, UN3803
• Withstands drops from 1.2m
• Operating temperature: -20°C to +60°C
• Storage temperature: -30°C to +70°C
• Humidity: 95% non-condensing
Accessories
• Carrying strap
• Docking station with battery charger
• Vehicle station
• 4 slot battery charger
• Vehicle power supply
