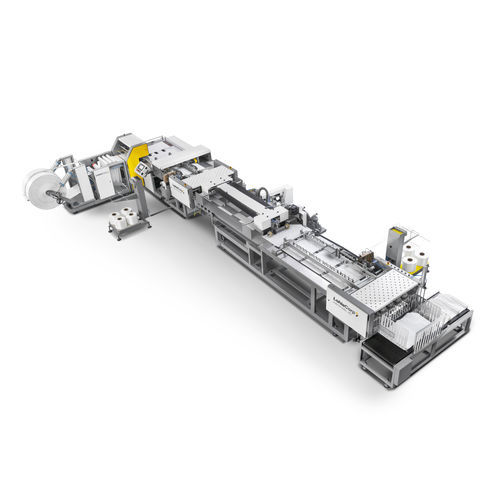

Bag conversion line Valvomatic 40

bag conversion line
bag conversion line
bag conversion line
bag conversion line
bag conversion line
bag conversion line
Add to favorites
Compare this product


Description

valvomatic 40 provides the ideal solution for producing both stitched valve type bags from tubular woven fabric. Appropriate for working with non-laminated fabric, it comes with an option laminated fabric as well. This new line, with servo & PLC control ensures high efficiency with minimal wastage resulting in considerable savings in manpower & materials. Valve dimensional accuracy Increased efficiency at packing stage Low energy consumption Low maintenance cost Width of unwinding fabric roll - 470–520 mm Cutting length - 850–1050 mm Cutting length accuracy - ± 1 mm for unprinted fabric Top folding width - 45 mm (Option- 40 mm) Bottom folding width - 25 mm (Option- 22 mm) Valve depth - 210–240 mm Valve width - 90-120 mm Production speed - 40 bags/min

VIDEO

Catalogs

End to End
End to End
2 Pages
