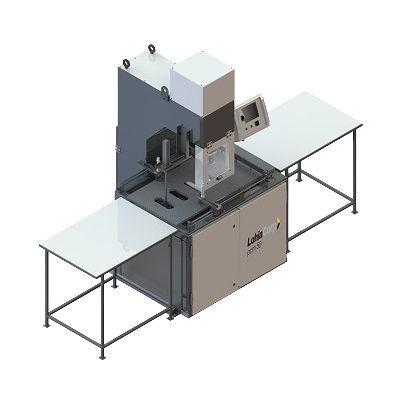

Die cutting machine

for fabricsprofileautomatic

Profile cutting machine is required to make baffle panels for specific requirements in FIBC (Jumbo bag) manufacturing. This is a hydraulically operated cold punch machine and can simultaneously punch the required profile in a bunch of fabric pieces. The punch dies are made to order. Waste removal system has been provided to make the machine fully automatic. One operator can handle multiple machines Width of fabric 690 mm (Max.) Maximum pieces of fabric per stack 50 Nos (Max.) Minimum & maximum holes 1-50 Nos Hydraulic capacity 15 ton (Max.) Hydraulic oil tank capacity 60 litre Fabric indexing Automatic Production speed - fabric movement speed 4 MTR/minute Production speed - cutting stroke time 8 Second/per stroke Machine dimensions (L x W x H) 1565 x 1650 x 2120 mm Power requirement 3.7 kW
