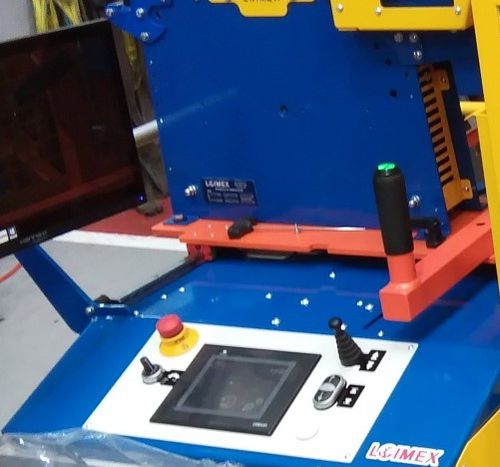

Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.
Range of application
Combined with a pre-selection counter, enables the machine to work automatically; thus allowing the operator to do other tasks during winding.
• Pitch selection is carried out by means of a 10 turn potentiometer or laser diameter measure device
• position is regulated by a position encoder which can be memorized
• Four memory positions from a Touch panel selection
• Maximum torque of 600 Nm
• Accessory for installing to the following machines D30
Torque Nm. - 600 -
Step (mm per revolution) - 0-50 -
Measuring head - M20-M40
