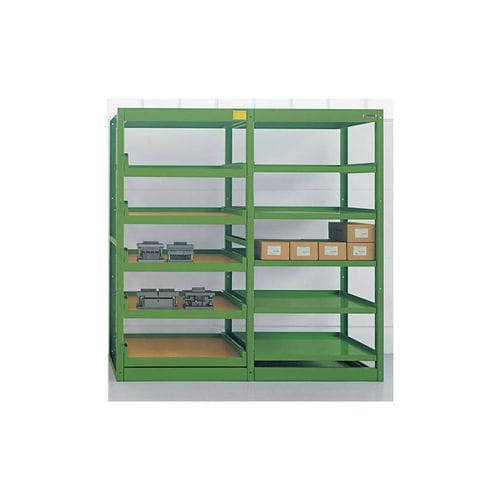

Handling shelving

pull-outfor heavy loadspalletized

The pull-out shelves permit easy and e effortless handling of heavy and bulky items by hand. A lift unit operation is also possible. Cover plate • Folded twice by 100 mm on the long side, can be screwed to the shelf unit frames to provide longitudinal reinforcement Shelf unit frame • 2 C-sections welded with cross struts to form a stable frame. Uprights perforated on a 90 mm pitch to accept the guideways and shelf supports. 54 mm wide, 785 mm deep, 2080 mm high. Maximum load capacity 4000 kg. Pull-out shelf • Supported in ball-bearing slides, standard pull-out, open at the front with chipboard base and 3-sided roll stop. Cannot be pulled out until the individual interlock is released. V20 E chipboard, 22 mm thick, untreated. Variable shelf panel • With 3-sided roll stop, 938 mm wide and 775 mm deep, incl. 2 shelf supports and screws. Longitudinal bracings • 100 mm high, folded in C-shape to provide longitudinal reinforcement. Shelf unit frames are screwed together with a cover plate and 2 longi- tudinal bracings to form basic and add-on bays. Pull-out shelf • Incl. ball-bearing slides • 868 mm wide, 750 mm deep • Can be extended by 545 mm • Load capacity 300 kg if load is evenly distributed Variable shelf • Incl. shelf supports • 938 mm wide, 775 mm deep • Load capacity 250 kg if load is evenly distributed
