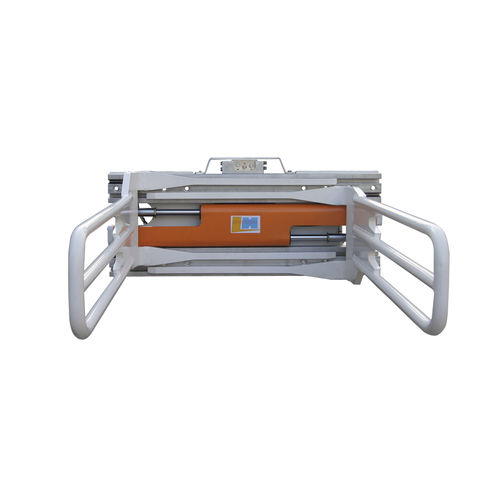

Forklift truck hydraulic clamp HMC -B/C

Designed specially to handle foam rubbe or chemical fiber without damaging it. Lateral sliding arm design for smooth clamping and sideshifting function are applied for high efficienty, safety, dur-ability and economy.. Found in industries that need to handle foam blocks，with high effeciency. Come in wide range of opening and arm design for different load. - - Capacity: 1900Kg/2700Kg - - Mounting Class: II/III - - Opening Range: 440mm – 2600mm - - Frame Width: 1260mm/1600mm - - Arm Height: 400mm/500mm/600mm - - Arm Length: 1800mm/2500mm - - Min Truck Carriage Width: 890mm – 1040mm - - Vertical Center of Gravity: 220mm – 279mm - - Weight: 550Kg – 860Kg - - Effective Thickness: 128mm/148mm - - Horizontal Center of Gravity: 375mm – 575mm Recommend Hydraulic Flow: 40L/min –120L/min Pressure: 160 Bar Note: 1. Please contact FLT manufacture for the residual capacity of attachment 2. 2 additional hydraulic circuits required * Further technical details are available upon request
