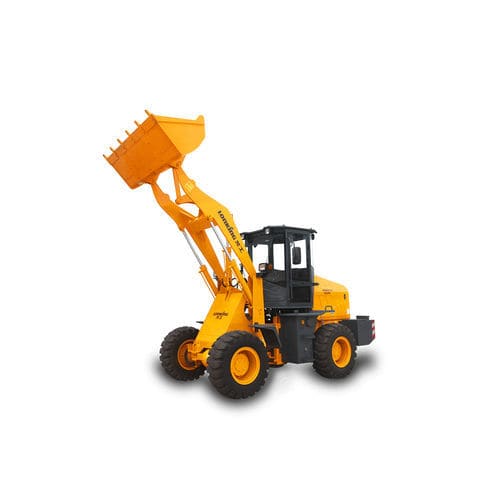

Wheeled loader CDM932NG

BASIC - Bucket Capacity - 0.8 m³ Rated Payload - 1500kg Traction Force - 52kN Breakout Force - 35kN L×W×H - 5925×2100×2950mm ENGINE - Manufacturer/Model - YUNNEI/YN38GBZ1（Nation Ⅱ） Rated Torque - 285N·m/1600-1800rpm DRIVE TRAIN - Transmission Type - Countershaft Powershift Shift Type - Fixed Shaft Hydraulic Shift Spur Gear Pressure of Transmission - 1.1-1.5MPa Gear - 2F/2R Torque Converter - Single-stage, Single-turbine, 3-element Torque Ratio - 3.13 Main Reducer - Spiral Bevel Gear Single-stage Reduction Final Reducer - Planetary Reduction Tire - 16/70-20 Travel speed-Forward - 8/20km/h Travel speed-Reverse - 8/20km/h BRAKE SYSTEM - Service Brake - Air Drive, Four Wheel Brake (Dry) Setting Pressure - 0.78MPa Parking Brake - Flexible Shaft Controlled Caliper STEERING SYSTEM - Type - Hydraulic Load Sensor System Steering Pump - Shared With Working Pump System Pressure - 14Mpa Steering Angle - ±30° HYDRAULIC SYSTEM - Type - Pilot control Working Pump - Gear Pump Flow Rate - 120L/min·2400rpm Control Valve - 2 Spool System Pressure - 16MPa Cycle Time (Sec) - 8.2 ELECTRIC SYSTEM - System Voltage - 24V Battery （ 2 in series) - 2x80 Ah SERVICE REFILL CAPACITY - Fuel Tank - 90L Hydraulic Tank - 65L Transmission - 19L Front Axle / Rear Axle - 24L
