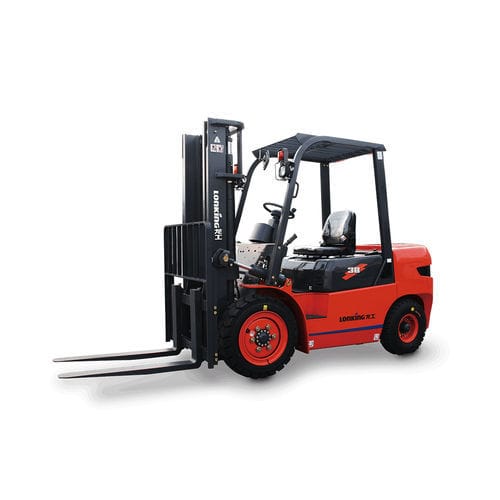

Diesel engine forklift truck FD15/20/25/30/35/38TIIIstand-oncounterweight
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel engine
- Operator
- stand-on
- Other characteristics
- counterweight
- Carrying capacity
Min.: 1,500 kg
(3,306.9 lb)Max.: 3,800 kg
(8,377.6 lb)- Lifting height
3,000 mm
(118.11 in)- Overall width
Min.: 1,090 mm
(42.9 in)Max.: 1,290 mm
(50.8 in)- Overall length
Min.: 3,180 mm
(125.2 in)Max.: 3,995 mm
(157.3 in)- Load center distance
500 mm
(19.7 in)- Axle loading with maximum load front
Min.: 3,760 kg
(8,289.4 lb)Max.: 7,920 kg
(17,460.6 lb)- Axle loading with maximum load rear
Min.: 420 kg
(925.9 lb)Max.: 880 kg
(1,940.1 lb)- Axle loading without load front
Min.: 1,072 kg
(2,363.4 lb)Max.: 2,001 kg
(4,411.4 lb)- Axle loading without load rear
Min.: 1,608 kg
(3,545 lb)Max.: 2,999 kg
(6,611.7 lb)- Turning circle radius
Min.: 1,950 mm
(76.8 in)Max.: 3,900 mm
(153.5 in)- Lifting speed
Min.: 380 mm/s
Max.: 550 mm/s
- Lowering speed
Min.: 300 mm/s
Max.: 600 mm/s
- Gradeability
15 %, 20 %
- Rated output
Min.: 14 kW
(19 hp)Max.: 24 kW
(32.6 hp)
Description
Safety and Reliable
Overall design frame and overhead guard with integral welded, Reduce vibration of whole machine and enhance frame strength.
High Stability
New dynamic counterweight design technology makes the center of gravity move backward, which improves load capacity and safety of loaded driving greatly.
Energy Efficiency
Optimized design of cooling system and air duct. Cyclone air filter with large flow.
Operating Comfort
Adopted interactive ergonomic design to improve operating comfort. Equipped with wide field of view mast to improve driver's field of view.
Well-adapted
Steering wheel can be adjusted at a large Angle to meet different driving needs.
Convenient Maintenance
Interior space of car body is more spacious Parts Positions are more reasonable. Maintainability of machine is better.
