signal amplifier / DIN rail / electronic / for strain gauge sensors
GM42-MAX

{{requestButtons}}

Characteristics

  • Type:

    signal

  • Other characteristics:

    DIN rail, electronic, for strain gauge sensors

  • Voltage:

    10 V

Description

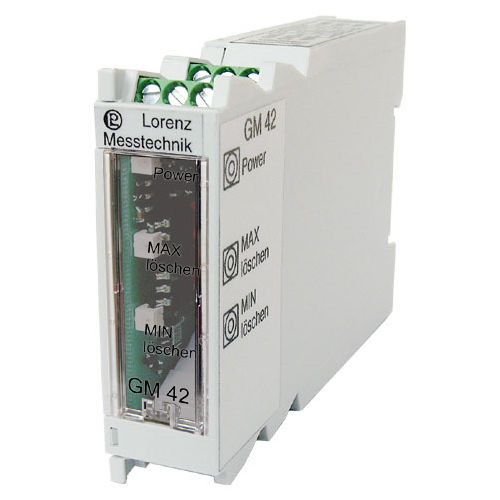

The GM 42 is a fast minimum and maximum memory device with a 0 .. ±10V input universally applicable.
The narrow shape of the housing allows space-saving mounting in switch cabinets on standardized DIN mounting rails.
A galvanically separated supply voltage range of 10 .. 30V and the min. - max. values of 0 .. ±10V al- low the direct signal processing with a SPS control.
Reset input: (delete)
One each for min. and max. . Both are galvanically separated by opto couplers.
2 x LED status displays in front.
Maximum Memory Device:
After a reset (control input) to -10V each most positive value is saved and transferred to the output.
Minimum Memory Device:
After a reset (control input) to +10V each most negative value is saved and transferred to the output.
The status indications are protected behind a transparent plexiglass
plate.
