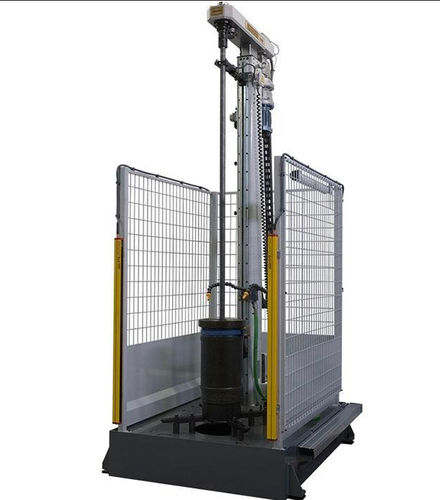

Vertical honing machine LS-VHX

Hone cylinders fast with LS Industries VHX Vertical Hone. The LS-VHX is small, compact and powerful. It quickly hones parts to a desired finish and cuts honing costs dramatically. Operation is simple, yet gives enough control for a variety of applications. Features Special design allows the operator to vary any parameter from the operation panel, except for the stroke. Easy set up and clamping for cylinder liners and hydraulic cylinders Honing diameter range of 20.875″ and up to 78.75″ in length. This machine is a great value with unmatched capabilities. Potentiometer to change axial speed Catcher graduated slide rule for stroke regulation Technical Specifications Maximum stroke 78.75 in (2000 mm) Diameter range 2.48 – 17.75 in (63 – 450mm) Maximum piece diameter 20.87 in (530mm) Axial speed 13-72 FPM (4-22m/min) Rotation speed 14 – 84 r.p.m. Optional diameter range 1.5 – 12.6 in (38 – 320 mm*) Optional rotation speed 30 – 180 r.p.m. * Stroke hydraulic power 3 HP Rotation power 1.5 HP Control voltage 24 V DC Voltage 3/440/60 Total power 6.75 HP Honing oil pump 0.25 HP Honing oil capacity 50 gallons Minimum pneumatic pressure 1 PSI
