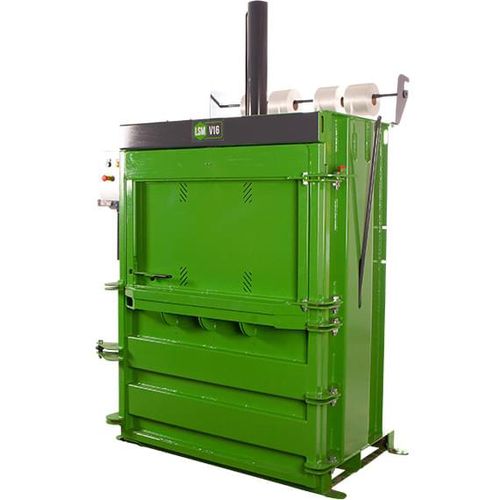

Cardboard baling press V16

for paperfor plasticsfor waste

Easy to load and operate, and able to consistently produce 250 kg bales year after year, the V16 is the ideal high-capacity baler for compacting a wide range of materials quickly and safely. With the footprint of a standard euro pallet, the V16 is suitable for baling cardboard, plastic, textile, paper, polystyrene and food waste. Recommended for supermarkets, service stations, department stores, hotels, manufacturing plants and logistics centres. FEATURES V16 baler with large filling chamber for easy loading Large filling aperture for easy loading High compaction ratio creates the optimum 250 kg bale Low-voltage user controls for added safety “Bale Full” indicator light helps ensure safe operation at multi-user sites Integrated kicker for easy bale removal 3-kilowatt motor for low power consumption yet powerful compaction SPECIFICATIONS Bale size: 800mm H x 1100mm W x 750mm D Cycle time: 40 seconds Dimensions: 2550mm H x 1695mm W x 870mm D Fill opening: 1100mm W x 625mm H Integrated bale kicker Machine weight: 950 kg Power: 3 Phase 380/400 volt. 3 kW motor Noise level: 74 dB EN 16,500 Compliant IP54 Standards E power Standards PLC controller with bale full light and auto cycle OPTIONS Tractor mounted Marine specification Automatic opening guillotine door Twin-chamber version Single phase 220 V 50 Hz 2 kW motor Electronic weighing system Annual service contract 3 Phase 220 volt Galvanised or Stainless Steel
