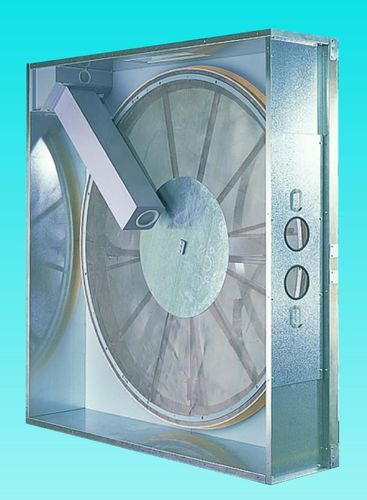

Air pre-filter TVM series

coarse pre-filtrationATEXcompact

The LTG prefilter TVM is used for coarse filtration, in which a primary air flow loaded with fibers and coarse particles flows through a rotating filter medium whose mesh size is adapted to the particles. The filter medium is cleaned continuously by a fixed suction nozzle that does not touch the filter medium. The separated and extracted coarse components are then fed to a separator with a conveying fan in the secondary circuit. For the multi-stage filtration of large air flows, flow-through screen meshes are advantageous for coarse filtration. These are characterized by the following properties: • High air permeability • Precise adaptation to the material to be separated through the use of different mesh sizes • Relatively sharp separation • Low-maintenance operation The advantages of the LTG TVM pre-filter can be summarized as follows: • Regenerative filter unit • No pressure fluctuations in the extraction system thanks to continuous cleaning • Space-saving installation thanks to the disk shape and compact design • Optimum face velocity through precise adjustment to the total air volume • Minimal soiling of the drive elements and easy access thanks to installation on the clean gas side • Easy replacement of the filter medium • Minimized pressure loss due to optimized flow routing • Antistatic and ATEX versions available
