Decentralized ventilation unit FVS-900/W Eco2School

wall-mounted

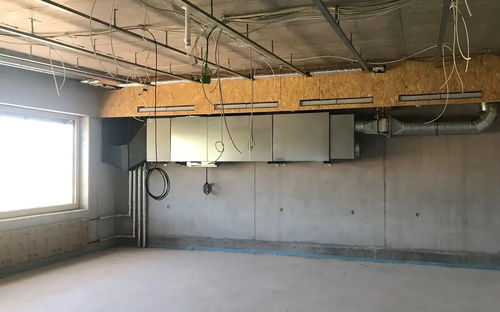

For controlledCO2 content without outside noise and entry of fine dust/pollen The LTG FVS Eco2School product line is specially designed for classrooms, group rooms and meeting rooms and is VDI 6040 compliant. Suitable for new builds and renovations, can be easily integrated into the wall or ceiling. Here you will find examples of typical installation situations. Type FVS-900 for air volumes up to 900 m³/h. Suitable for ventilating individual, connected rooms or usage units up to approx. 180 m² floor area or for groups up to max. 30 persons. For lower air volumes up to 730 m³/h, we recommend the type FVS-600. • Maximum protection against infection thanks to 100% fresh air supply • Highest air quality: energy-efficient, draught-free and low-noise • Maximum flexibility for ceiling or wall mounting (with or without cladding) • Guaranteed compliance with workplace regulations and VDI 6040 incl. of the required minimum outside air change • Disruption-free teaching and minimal fine dust/pollen content through effective filtering of the outside air • Individual control as required: controlled by time orCO2/VOC sensor • Modular complete system • Only one façade opening for exhaust and outside air • Energy-saving thanks to highly efficient heat recovery (> 80 %) An overview of all variants of the FVS family incl. technical data can be found in our brochure Decentralized ventilation units.
