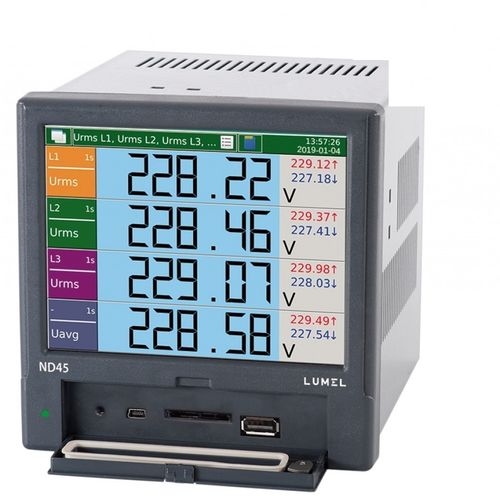

Analog recorder ND45

currentenergynetwork

Measurement and recording of over 500 electric energy quality parameters, class A for selected parameters, harmonics and interharmonics up to 51st, energy measurement in 4 tariffs, recording of measurements before and after events (dips and swells), configurable display and web server - these are some of ND45 power analyzer advantages (successor of ND40 analyzer). -Measurement and recording of over 500 electric energy quality parameters acc. to EN 50160, EN 61000-4-30 standards. -Measuring Class A. -Operation in 3 or 4-wire, 3-phase, balanced or unbalanced power networks. -Analysis of current and voltage harmonics and interharmonics up to the 51st for class I. -Flicker -4-quadrant energy measurement in 4 tariffs -Monitoring up to 6 additional energy meters with pulse output -Recording measurements before and after events (dips and swells) -Configurable archives of actual values and events recording. -Data archiving on an SD card - memory up to 32 GB. -Binary inputs (optionally) -Relays, binary or analog outputs (optionally) -E-mail messages in case of alarm occurs, -Web Server (HTTP protocol), FTP Server, DHCP client -Interfaces: -RS-485 Modbus Slave, -Ethernet 100 Base-t (Modbus TCP/IP Server), -USB device & host. -Colour touch screen: LCD TFT 5.6”, 640 x 480 pixels. -IP54 protection grade from the frontal side. -Automatic synchronization of RTC clock with the NTP time server. -External dimensions: 144 x 144 x 104mm
