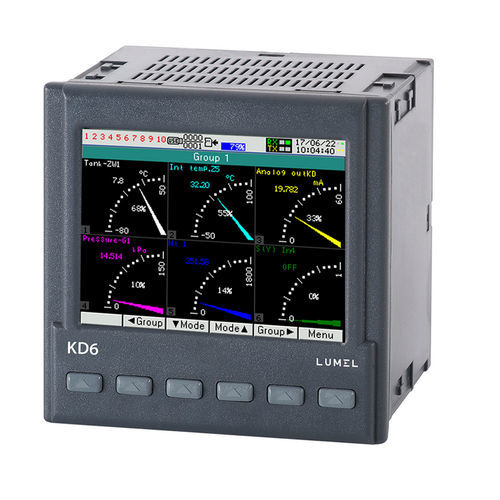

Analog recorder KD6

vision processing8-channelprogrammable

The KD6 recorder is designed to measure, visualize and control the parameters of technological processes in various branches of industry. It can be used as a data collection station in measurement and control systems or as an autonomous measuring and recording device. -Easy and intuitive servicing based on the graphical Windows 3.5" TFT type colour LCD display, -Up to 60 logical channels (max. up to 8 analog channels), -Input : -Measuring Programmable (0,4 or 8) -Binary (0,4 or 8) -Modbus RTU Master (10 devices, 10 registers each) -Output : -Relay (0, 4, 6, 8 or 12) -Analog (0, 4 or 8) -Auxiliary power supply 24V d.c. / 30mA -Supply voltage : 85...253V a.c., 90...300V d.c. or 20...60V d.c. -Depending on needs, the user has the choice of following communication interfaces: RS-485 MODBUS (Master and Slave) ,ETHERNET (MODBUS TCP/IP, WWW, FTP, NTP,DHCP), USB Host 2.0. -Possibility to exchange of configuration data between the recorder and PC through the USB interface, -Internal memory 8 GB. -Server WWW allows you to view the current state of the recorder through any web browser, -Advanced mathematical functions on measured values, -Archiving and visualisation of measuring data transmitted to KD6 from external devices via RS-485 MODBUS . -External dimension: 96 x 96 x 77 mm
