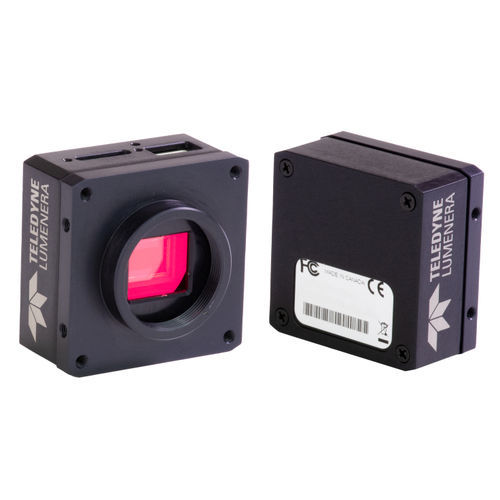

Digital camera Lt-C/M4020

industrialmachine visionfor scientific applications

Portability and Mobility in Mind The top priority for a vision system designed to be transported is size and weight. The Teledyne Lumenera Lt-C/M4020 camera offers an easy-to-handle form factor that can be integrated into a variety of designs such as handheld vision systems. The Lt-C/M4020 camera is also an obvious choice for applications in machine vision such as flat panel inspection, metrology, and robotics where a camera needs to fit into a predetermined space. The smaller footprint and lower weight means vision system designers do not have to be concerned with heavy and bulky hardware when looking to maximize imaging performance. TELEDYNE LUMENERA LT-C/M4020 CAMERA HIGHLIGHTS •Color or monochrome Sony® Pregius™ IMX304 global shutter CMOS sensor with 1.1” optical format •12 megapixel camera with frame rates of 22 fps at full resolution (4112 X 3008) •High-Speed USB 3.1 Gen 1 interface for fast image delivery and simplified connectivity •Compact form factor measuring 45 mm x 45 mm x 36.1 mm •Locking industrial micro USB on the side for power and control •Region of Interest (ROI) option to provide higher frame rates •Selectable 8 or 12-bit pixel data •Multiple data rates supported, each optimized for lowest noise performance SOFTWARE PLATFORM OPTIONS •USB3 Vision compliant SDK •Teledyne Lumenera Camera SDK (Windows and LINUX) KEY APPLICATIONS •Aerial imaging •Precision agriculture •Portable / OEM Devices •Outdoor imaging •Intelligent Traffic Systems (ITS) •Life sciences •Industrial inspection solutions
