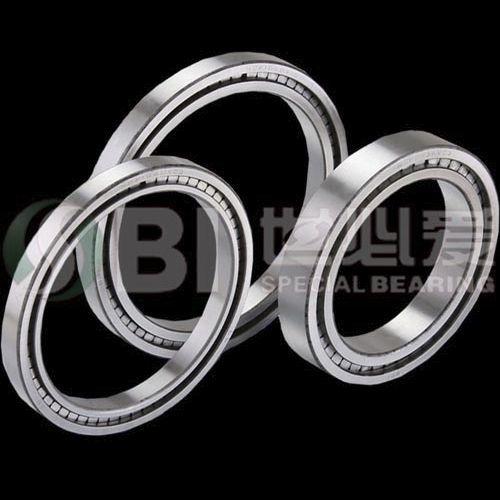

Cylindrical roller bearing NCF series
single-rowradialaxial

cylindrical roller bearing
cylindrical roller bearing
Add to favorites
Compare this product


Characteristics

Rolling element
cylindrical roller
Configuration
radial, axial, single-row
Material
steel
Other characteristics
with cage
Inside diameter

Min.: 20 mm
(0.79 in)

Max.: 500 mm
(19.69 in)

Outside diameter

Min.: 47 mm
(1.85 in)

Max.: 670 mm
(26.38 in)

Width

Min.: 18 mm
(0.709 in)

Max.: 148 mm
(5.827 in)

Description

SBI full complement cylindrical roller bearings (Full Complement Bearings) are designed to carry heavy load. Comparing with traditional bearings with cage, full complement cylindrical bearings have much higher loading capacity. The radial cross section of the type of bearings is very small. So it can be very space – saving. However the limiting speed of the bearings is relatively lower. All the multi – row cylindrical roller bearings are with a lubrication groove and one nipple on the outer ring. A minimal load is required (C/P <25) for the bearings to run well in succession. Otherwise wear may happen when lubrication is running out or rotating speed is high. NCF•••V type full complement cylindrical roller bearings are with a single rib on one side of the outer ring. A snap ring is on the other side which makes the shaft be stationary in single direction. The axial gap “s” inside the bearings ensures the axial displacement of shaft to the bearing housing case. For this “s” value, please consult SBI technical service. NJ•••V type full complement cylindrical roller bearings is applied under very high loads and slow rotating speed conditions. The rollers are self – locked and will not fall apart even if the inner ring is removed. Therefore, the mounting and dismantling of the type of bearings are convenient. The bearings can carry axial load in one direction.
