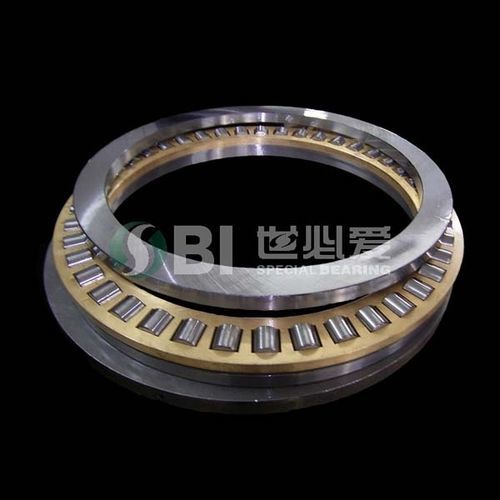

Cylindrical spherical roller thrust bearing 29 series
steelbrass

cylindrical spherical roller thrust bearing
cylindrical spherical roller thrust bearing
Add to favorites
Compare this product


Characteristics

Shape
cylindrical
Material
steel, brass

Description

Thrust bearing is a kind of special bearing that endure the axial force., that is to said the force is parallel to the axial. Thrust bearing is composed by two or more thrust sheets and more rolling elements. The thrust sheets divied into shaft washer & housing washer, the rolling elements was fixed by the steel or brass cage. Many of thrust bearing is ball thrust bearing. The shaft washer, housing washer, the cage and balls of thrust bearing are separated. The shaft washer matches to the axial, the housing washer matches to the bearing house. There is clearance between the housing washer and the axial; Thrust bearing just endure the axial load, the unidirectional thrust just endure one-way axial load, bidirectional thrust bearing can endure double way axial load; It can not control the radial displacement of the axial, the limte speed is lower. The unidirectional thrust bearing can control the axial displacement of the axial and the shell in one way, the bidirectional bearing can control the axial displacement of the axial in double way. Thrust roller bearing endure and axial and radial load, but the radial load is less than the 55% of axial load. Compare to other thrust bearing, it’s friction coefficient is lower, the speed is higher, and have the heart-regulating character.

Catalogs

No catalogs are available for this product.

See all of Luoyang SBI Special Bearing‘s catalogs
