Storage tank

diesel storagegalvanised steelwelded steel

Product overview

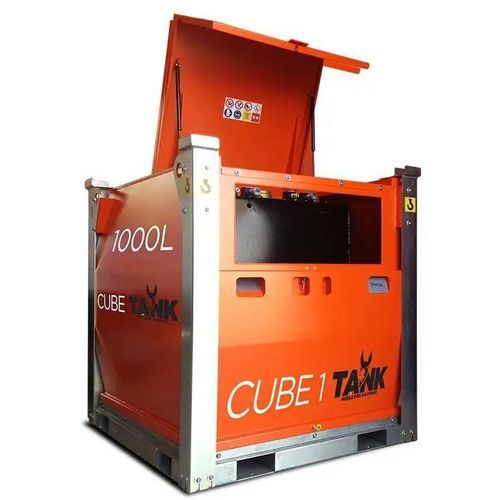

Cube Tank is a range of fully bunded fuel tanks designed for safe on-site refuelling and auxiliary fuel supply for engine-powered equipment. Built in welded carbon steel with integrated secondary containment (110%), the units are durable, stackable and engineered for continuous use in industrial environments. Ideal for generator support and multiple-machine refuelling operations.

Plus & main features

• Powder-coated galvanized framework for corrosion resistance
• Watertight welded carbon steel primary tank
• 110% built-in bund for full secondary containment
• Liftable corner brackets and forklift pockets on each side for handling
• Discharge sleeve supplied with protective cap
• Two pairs of generator feed and return connections
• Lockable equipment cabinet with anti-burglary screws
• Internal baffles to reduce fuel movement
• Complies with applicable environmental regulations
• ADR approved for transport where required

Tank

• Horizontal rectangular tank body, 2.5 mm plate thickness
• Manufactured from high-grade carbon steel
• Welded by submerged arc welding for consistent weld quality
• External finish: two anti-rust coats plus two glazed topcoats
• Weld integrity tested at 4 bar compressed air

Bunded tank (secondary containment)

• Constructed from 3 mm thick carbon steel sheet
• Two-layer painting for enhanced protection
• Self-supporting galvanized base frame bolted to tank bottom
• Galvanized lifting eyebolts included
• Four side clamps for secure ground anchoring
• Grounding connection provided

Docking station

• Fabricated from 4 mm thick galvanized carbon steel sheet
• Features forklift pockets and stable support on varied surfaces

Technical specifications

• Model: CUBE TANK
• Brand: Luxtower
• Construction: Watertight welded carbon steel
• Secondary containment: 110% bunded built-in tank
• Tank material thickness: 2.5 mm (tank body), 3 mm (bunded sheet)
• Welding method: submerged arc welding
• External paint: two anti-rust layers + two glazed finishing layers
• Structural frame: powder-coated galvanized framework; self-supporting galvanized base bolted to tank
• Lifting & handling: liftable corner brackets, forklift pockets, galvanized lifting eyebolts
• Connections: two pairs of generator feed & return connections; discharge sleeve with cap
• Security: lockable equipment cabinet and anti-burglary screws
• Internal features: internal baffles
• Testing: weld integrity tested at 4 bar compressed air
• Compliance: complies with current environmental regulations; ADR approved
• Stacking: stackable up to three units
• Grounding: grounding connection provided
