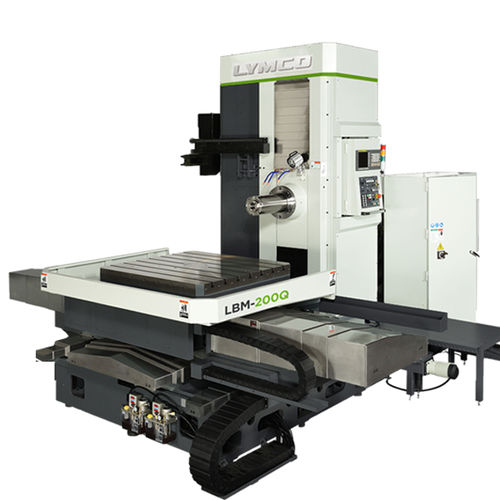

Conventional boring mill LBM-200Q

horizontalheavy-duty

The LBM-200Q horizontal boring and milling machine is designed to handle heavy-duty machining tasks. This machine could be configured with Fanuc, Heidenhain, Siemens, or Mitsubishi controls for the most friendly commencement and shop-wide integration. The quill and spindle transmission design, heavily ribbed casting structure, and detail-oriented building procedures were all fitted to provide confidence and consistent result in heavy cutting. The machine was built with all axis box type guideways and spanning across the table traverse to allow the full support of table stroke. The heat-treated and precision ground box type guideways provide the structural strength that was much needed in heavy industries such as fracking components, large valve components, and wind turbine housings. The 200mm quill diameter was specifically designed and manufactured for stable heavy milling results when the quill was fully extended. Massive, over 1000Nm torque was produced at the spindle to handle a large variety of materials. The overall machine structure was design to withstand the stress of heavy parts in the energy industry Expect big tool capacity from 200 mm Quill LYMCO LBM-200Q is equipped with a quill of 200mm in diameter. Based on Japanese structural design, the spindle transmission and quill are assembled as one unit. Thus allowing stable output of power with minimal vibration. The large size quill allows the rigidity much needed in cutting big bores for fracking parts, valve parts, or big engine housings. In addition, the milling power and gearbox structure allow the machine to remove more than 500cc of S50C material with only 40% load to the spindle per minute.
