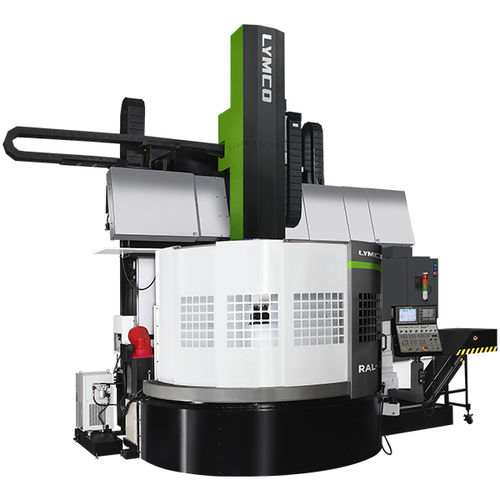

CNC turning center / vertical / 3-axis / milling machine
RAL Series

• Control type:

  CNC

• Spindle orientation:

  vertical

• Number of axes:

  3-axis

• Other characteristics:

  milling machine, cutting, multi-function, two-spindle, precision, rigid, ram, drilling

• Applications:

  heavy-duty, for oil industry applications, for large workpieces, for large-bore parts, for valve balls

• Diameter:

  1,200 mm, 1,600 mm, 2,000 mm, 2,500 mm (47.24 in)

  Max.: 2,000 mm (78.74 in)

  Min.: 1,200 mm (47.24 in)

• Spindle speed:

  Max.: 200 rpm (1,256.637 rad.min-1)

  Min.: 100 rpm (628.319 rad.min-1)

Lymco RAL vertical turning center focus on general turning needs of everyday shops. Designed with octagonal ram and hydrostatic table, the RAL vertical lathe can handle deep cuts while enjoy a good clearance for internal boring. Upon adding the C axis function, the RAL vertical turning center is capable of milling, drilling, and tapping on a workpiece right after turning. The movable cross rail provides flexible high and low profile setup.
