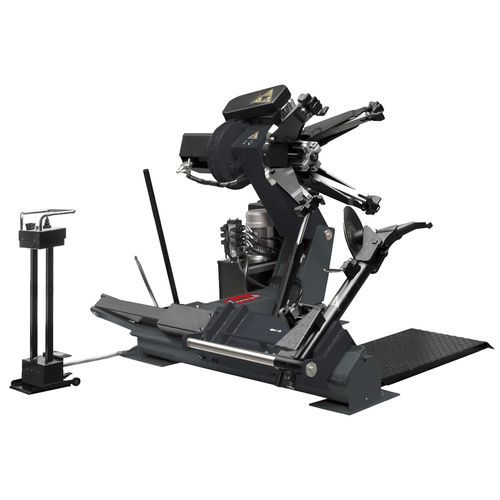

Truck tyre changer TCT46
for busesfor agricultural vehiclesfor industrial vehicles

Truck tyre changer - TCT46 - M & B Engineering S.r.l. - for buses / for agricultural vehicles / for industrial vehicles
Truck tyre changer - TCT46 - M & B Engineering S.r.l. - for buses / for agricultural vehicles / for industrial vehicles
Truck tyre changer - TCT46 - M & B Engineering S.r.l. - for buses / for agricultural vehicles / for industrial vehicles - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for industrial vehicles, for trucks, for buses, for agricultural vehicles
Type
semi-automatic
Other characteristics
mobile, electro-hydraulic
Clamping diameter

Min.: 14 in

Max.: 56 in

Max wheel diameter

2,300 mm
(90.6 in)

Max wheel width

1,065 mm
(42 in)

Description

Product overview
  • Semi-automatic electro-hydraulic tyre changer designed for tyres up to 56" for trucks, buses, agricultural and earth-moving machines.
  • Universal 4-jaw hydraulic self-centering chuck developed to clamp rims from 14" to 46" (extendable to 56" with optional extensions).
  • Jaws with 5 clamping points to ensure optimal grip on a variety of rim profiles.
  • Chuck offers two rotation speeds in both directions for controlled mounting/demounting.
  • Minimum central hole diameter: 115 mm.
  • Manual left-right translational movement of the tool-holder carriage for precise positioning.
  • Tool arm with manual lifting and rotation to adapt to different tyre/rim combinations.
  • Transportable low-voltage hydraulic control unit equipped with an anti-crush cable for operator safety.


Standard configuration
  • Standard configuration supplied by the manufacturer; consult the product resources for the complete list of standard equipment and available options.


Technical data
  • Tyre capacity: up to 56" (with optional extensions).
  • Rim clamping range: 14"–46" (extendable to 56" with extensions).
  • Minimum central hole diameter: 115 mm.
  • Universal 4-jaw hydraulic self-centering chuck with 5 clamping points.
  • Chuck rotation: two speeds, both clockwise and counterclockwise.
  • Manual lateral translation of the tool-holder carriage.
  • Manual lifting and rotation of the tool arm.
  • Low-voltage transportable hydraulic control unit with anti-crush cable.


Characteristics / technical specifications
  • Type: Semi-automatic electro-hydraulic tyre changer.
  • Application: Truck, bus, agricultural and earth-moving machine tyres.
  • Maximum tyre size: up to 56" (with optional extensions).
  • Rim clamping system: 4-jaw hydraulic self-centering chuck.
  • Clamping range: 14"–46" (up to 56" with optional extensions).
  • Jaws: 5 clamping points per jaw.
  • Chuck rotation: two speeds, reversible in both directions.
  • Minimum centre hole diameter: 115 mm.
  • Tool-holder carriage: manual left-right translation.
  • Tool arm: manual lifting and rotation.
  • Control unit: transportable low-voltage hydraulic unit with anti-crush cable for enhanced safety.
