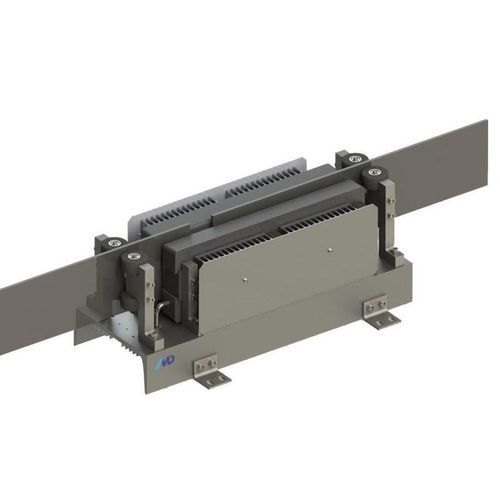

AC linear motor VFDthree-phaseinduction380 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase, AC
- Type
- induction
- Voltage
- 400 V, 380 V
- Configuration
- aluminum frame
- Protection level
- maintenance-free, IP65
- Performance
- low-noise
- Other characteristics
- with electronic control
- Speed
Max.: 3 m/s
(9.84 ft/s)Min.: 0.8 m/s
(2.62 ft/s)- Force
Max.: 400 N
Min.: 200 N
Description
Product Overview
VFD aluminum linear motor for automation. Motor type: linear induction motor. Nominal input voltage: 380V-400V. Nominal input frequency: 50/60Hz. Nominal thrust force: 200N. Max. thrust force: 400N. Nominal current: 2A. Max. current: 4A. Speed range: 0.8-3m/s. Installation air gap: 6mm-10mm. Insulation grade: F. Degree of protection: IP65. Ambient temperature (Primary): -30℃ to 45℃.
Features
Advantages / Application Notes
Non-contact drive avoids mechanical friction and noise, eliminating mechanical wear under normal controlled conditions and providing long service life. This motor is commonly used as the main drive for crossbelt sorters (CBS loop). Compared with friction-based drives, it delivers maintenance-free operation, reduced noise, no part loss due to wear, reliable performance at low temperatures without friction slippage, and a wide usable speed range of 0.8–3.0 m/s.
Technical specifications
VFD aluminum linear motor for automation. Motor type: linear induction motor. Nominal input voltage: 380V-400V. Nominal input frequency: 50/60Hz. Nominal thrust force: 200N. Max. thrust force: 400N. Nominal current: 2A. Max. current: 4A. Speed range: 0.8-3m/s. Installation air gap: 6mm-10mm. Insulation grade: F. Degree of protection: IP65. Ambient temperature (Primary): -30℃ to 45℃.
Features
- Energy-efficient and space-saving design
- Non-contact, frictionless, fanless and maintenance-free operation
Advantages / Application Notes
Non-contact drive avoids mechanical friction and noise, eliminating mechanical wear under normal controlled conditions and providing long service life. This motor is commonly used as the main drive for crossbelt sorters (CBS loop). Compared with friction-based drives, it delivers maintenance-free operation, reduced noise, no part loss due to wear, reliable performance at low temperatures without friction slippage, and a wide usable speed range of 0.8–3.0 m/s.
Technical specifications
- Motor type: Linear induction motor
- Nominal Input Voltage: 380V-400V
- Nominal Input Frequency: 50/60Hz
- Nominal Thrust Force: 200N
- Max. Thrust Force: 400N
- Nominal Current: 2A
- Max. Current: 4A
- Speed Range: 0.8-3m/s
- Installation Air Gap: 6mm-10mm
- Insulation Grade: F
- Degree of Protection: IP65
- Ambient temperature (Primary): -30℃ to 45℃
