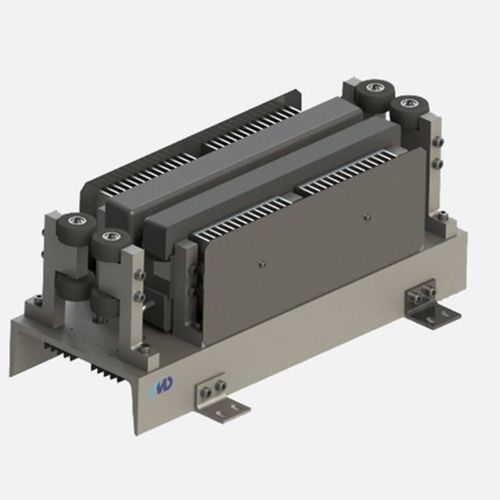

AC linear motor LMthree-phaseinduction380-480 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase, AC
- Type
- induction
- Voltage
- 380-480 V
- Protection level
- maintenance-free, IP65
- Performance
- high-speed, high-precision, low-noise
- Other characteristics
- compact
- Speed
Max.: 3 m/s
(9.84 ft/s)Min.: 0.8 m/s
(2.62 ft/s)- Force
Max.: 400 N
Min.: 200 N
Description
Product Overview
Introducing the LIM-200 linear induction motor engineered for automation and cross-belt sorter applications. Its non-contact, frictionless design provides reliable, low-maintenance linear motion for high-throughput sorting systems.
Key features
Applications
Designed for integration in automation lines and cross-belt sorters where fast, precise and low-maintenance linear motion is required.
Technical description
The LIM-200 delivers a maintenance-free solution that reduces inspections and repairs, increasing system uptime. Its advanced linear induction topology simplifies integration with conveyor controls and supports demanding sorting cycles with repeatable positioning.
Technical specifications
Introducing the LIM-200 linear induction motor engineered for automation and cross-belt sorter applications. Its non-contact, frictionless design provides reliable, low-maintenance linear motion for high-throughput sorting systems.
Key features
- Maintenance-free, non-contact operation minimizing downtime
- Fanless design for reduced noise and cleaner environments
- High-precision motion suitable for high-speed sorting and automated handling
- Energy-efficient and compact construction for space-constrained installations
Applications
Designed for integration in automation lines and cross-belt sorters where fast, precise and low-maintenance linear motion is required.
Technical description
The LIM-200 delivers a maintenance-free solution that reduces inspections and repairs, increasing system uptime. Its advanced linear induction topology simplifies integration with conveyor controls and supports demanding sorting cycles with repeatable positioning.
Technical specifications
- Motor type: Linear induction motor
- Nominal Input Voltage: 380V-400V
- Nominal Input Frequency: 50/60Hz
- Nominal Thrust Force: 200N
- Max. Thrust Force: 400N
- Nominal Current: 2A
- Max. Current: 4A
- Speed Range: 0.8-3m/s
- Installation Air Gap: 6mm-10mm
- Insulation Grade: F
- Degree of Protection: IP65
- Ambient temperature (Primary): -30℃ to 45℃
- Product advantages: Energy-efficient and space-saving; Non-contact, frictionless, fanless and maintenance-free
