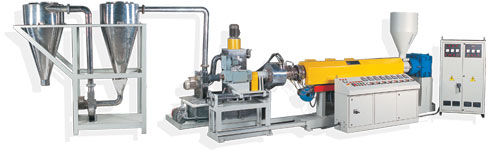

Compounding extruder for rubbersingle-screw
Add to favorites
Compare this product
Characteristics
- Applications
- compounding
- Treated material
- for rubber
- Number of screws
- single-screw
- Output
Max.: 300 kg/h
(661.3868 lb/h)Min.: 70 kg/h
(154.3236 lb/h)
Description
Available in standard, vented and High L/D Ratio Version.
Screw & Barrel made of Alloy Steel duly nitrided & honning finished.
Mounted on sturdy steel frame.
Heavy Duty thrust, Housing, bearing dipped in oil.
Drive from main A. C. motor to screw is via rubber belts and pulleys and a reduction gear unit.
Barrel Heating by ceramic band heaters.
Cooling System for accurate temperature control provided.
Heating Control by temperture controller.
Cross Head & Die:
Compact in Design and having swivelling arrangement.
