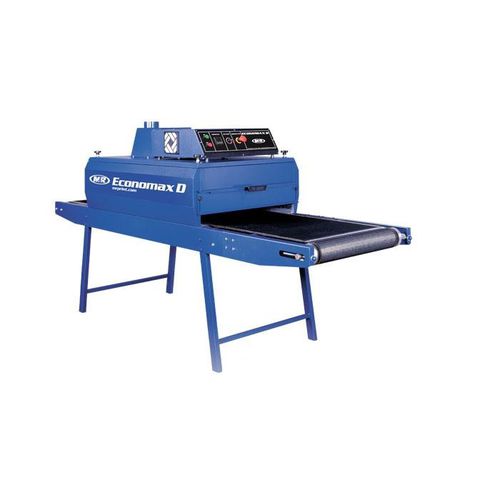

Hot air dryer ECONOMAX D™ series
infraredcontinuousfor the textile industry

hot air dryer
hot air dryer
hot air dryer
hot air dryer
hot air dryer
hot air dryer
hot air dryer
Add to favorites
Compare this product


Characteristics

Technology
hot air, infrared
Batch/continuous
continuous
Applications
for the textile industry
Other characteristics
with belt conveyor

Description

Easy to own and economical to operate, Economax D™ is the ultimate affordable, space-saving infrared electric screen printing conveyor dryer. Not only does it have the highest production capacity in its class of conveyor dryers, it’s also the most energy efficient. Entry and exit openings are adjustable, and heavy-duty thermal insulation prevents heat from migrating into the workplace, while CoolSkin™ technology leaves the dryer skin cool to the touch. Fast cure rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost. Economax D cures with twin height-adjustable energy-efficient infrared panels. It features a 61 cm (24") Teflon®-coated fiberglass conveyor dryer belt, and can be equipped with a third radiant panel for increased dryer production capacity. A reliable, heavy-duty DC motor provides power, and Economax D’s Proportional Integral Differential (PID) control allows the conveyor dryer to power up gradually to avoid maximum amperage loads during initial warmup. PID control also helps maintain even temperatures during production by phasing on and off rather than using the full-load/no-load approach. The control panel operates and displays temperature and conveyor belt speed. Process temperatures and set temperatures are controlled digitally. PID control responds to ambient temperature changes by keeping the conveyor dryer chamber heat within 1° of target temperature at the thermocouple. Economax D’s reliable, heavy-duty, variable-speed DC motor powers M&R’s Teflon-coated fiberglass Patriot Belt™ with the SureTrak™ roller system.
