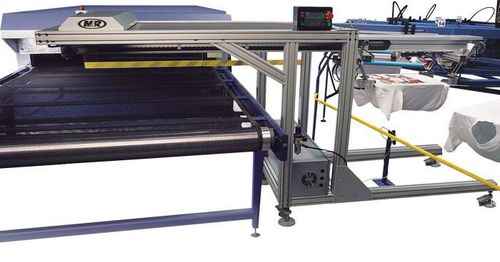

The phenomenal Passport™ is M&R’s patented automatic textile unloader for automatic screen printing presses. Automatic takeoff systems for graphics have long been a staple of the industry, but the search for a successful automatic takeoff system for T-shirts and other textile substrates remained elusive—until M&R took on the challenge. Passport is the first automatic unloader to remove textile substrates quickly, carefully, and consistently. In addition to revolutionizing the takeoff process, Passport dramatically lowers labor costs by reducing the number of people needed to operate a screen printing press.
Passport minimizes design distortion by gripping the T-shirt, towel, or other textile substrate with four patented grippers on retracting arms (U.S. Patent No. 6,105,494) and lifting it straight up off the pallet. Then Passport deposits the substrate on the belt of the conveyor dryer. Not only does Passport minimize stretching, Passport doesn’t tire or lose concentration. Available in inline and side-takeoff versions, Passport works with all M&R automatic screen printing presses and with most gas and electric conveyor dryers. Passport supports pallet and platen sizes between 25 x 25 cm (10” x 10”) and 61 x 76 cm (24” x 30”). Standard screen printing pallets can easily be adapted for Passport use by attaching (glue or screw) front and rear brackets. Passports also feature servo drives and solid-state control panels with digital display. And Passports are fast, achieving cycle rates up to 100 dozen per hour.
