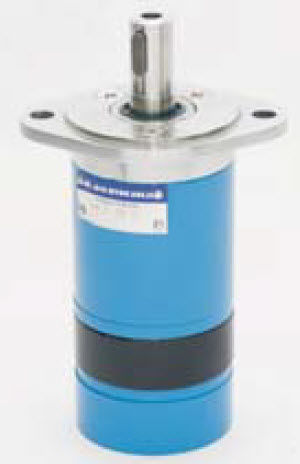

Gerotor hydraulic motor MM, MLHM series

gerotor hydraulic motor
gerotor hydraulic motor
gerotor hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
gerotor
Pressure

Min.: 90 bar
(1,305 psi)

Max.: 140 bar
(2,031 psi)

Rotational speed

Min.: 400 rpm
(2,513.27 rad.min-1)

Max.: 1,950 rpm
(12,252.21 rad.min-1)

Torque

Min.: 11 Nm
(8.11 ft.lb)

Max.: 45 Nm
(33.19 ft.lb)

Displacement

Min.: 1 cm³
(0.03 US fl oz)

Max.: 49 cm³
(1.66 US fl oz)

Description

This gerotor set comes with a spool valve integrated with an output shaft, supported by hydrodynamic bearings. In addition to this, the MM series of products also ensures a distribution valve that is integrated into the output shaft. Next, the cardan shaft rotates the distribution valve and mechanical energy from the generator set to the output shaft.
