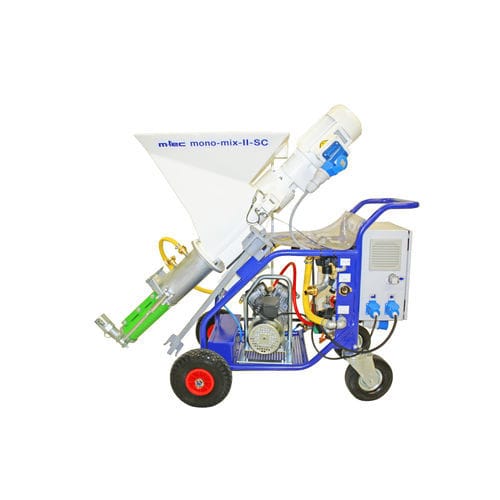

Mixer pump MONO-MIX II SC

The mono-mix II SC is the result of a long history of success with our most reliable and efficient mixing pump, the mono-mix. This enhanced version is specifically designed for the application of thin coat plasters and coatings on rough and uneven surfaces, as well as the application of thin coat gypsum products on drywall and airtight sealing of masonry. Ideal for applications such as: Dry adhesives Cement plaster Decorative plaster Gypsum plaster Gypsum smooth finish Adhesive and reinforcing mortars Smoothing plaster Thin-coat plasters Application fields: Construction chemistry Coating Insulation Plastering Renovation Recommended accessories: Mortar hose, air hose Fine plaster spray gun Rotors/Stators Spray device, adhesive gun Mixing shaft, pump end piece Stator and Rotor mono-star Selected Rotors/Stators: Rotor m-tec® B4-1.5 Stator m-tec® B4-1.5 Flow Rate: - Standard approx. up to 6.5 l/min (setting 4), variable with other screw pumps and conversion kits Delivery Distance: - up to 15 m Delivery Rate: - up to 5 m Delivery Pressure: - up to 20 bar Drive Motor: - 3,0 kW Compressed Air Supply: - 1,1 kW, approx. 230 l/min, 3,5 bar Electrical Connection: - 230 V, 50 Hz, 1 ph Fuse: - 16 A Power Cable: - 3 x 2,5 mm² Plug: - 16 A 3 P 6 h Water Connection: - 3/4" water hose with GEKA coupling, required water pressure: min. 2.5 bar during operation Dimensions: - approx. 1430 x 670 x 1150 mm
