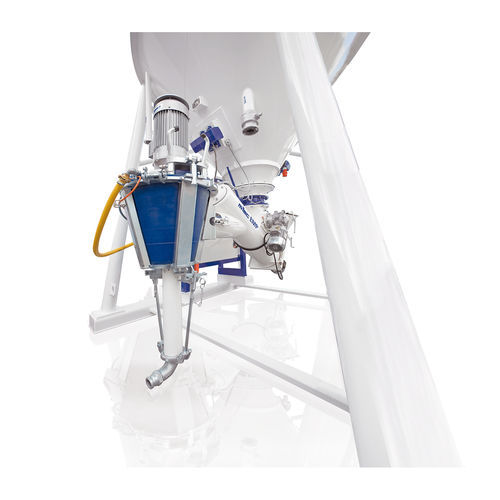

Mixer pump EMP

The m-tec® EMP revolutionizes the processing of dry mortars when combined with the m-tec® Silo. This advanced solution not only offers optimal mixing and long conveying distances but also stands out with its easy handling and significantly reduced cleaning effort. Specializing in: Gypsum plasters Lime-gypsum plasters Cement plasters Lime plasters Lime-cement plasters Masonry mortar Insulation plasters Finish plasters Reinforcement and adhesive mortars Adhesives for high-performance products Application Areas: Construction chemistry Coatings Flooring Insulation work Recommended Accessories: Rotors/Stators Mortar hoses Glue gun Fine plaster spraying device Silo and silo placing units Tenichal Data Flow Rate: - approx. 13 – 47 l/min (depending on version and screw pump) Delivery Distance: - up to 80 m Delivery Pressure: - up to 40 bar Drive Motor: - Conveying Section: - 3,0 kW / 4,0 kW, 400 V, 50 Hz Mixing-Pump Section: - 7,5 kW, 400V, 50 Hz Rotary Valve Motor: - 0,75 kW, 400V, 50 Hz Electrical Connection: - 400 V, 50 Hz, 3 ph Fuse: - 35 A Power Cable: - 5 x 4,0 mm² Water Connection: - ¾” water hose with GEKA coupling Dimensions: - approx. 1100 x 500 x 600 mm Weight: - approx. 41 kg
