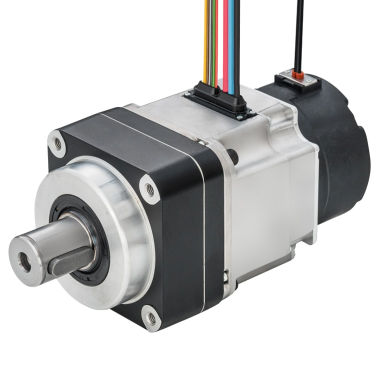

These models are IS/MS series equipped with a resolver sensor equivalent to 15-bit resolution. These motors are suitable for driving AMR/AGVs, etc. used in warehouses and factories that require stable running performance in the stop to low-speed range.
Product features
These motors are equipped with a resolver sensor with 15-bit angular resolution, enabling speed control in the range of 0-4,000 r/min and smooth running at low speeds with little rotation irregularity.
Instant Maximum Output -
320W (10sec max.)
Instant Maximum Torque -
17.2Nm (10sec max.)
Rated Voltage -
24V
Rated Output -
180W
Rated Torque -
8.6Nm
Rated Speed - 2
00r/min
Operating Voltage -
17-60V
Size -
85.0 mm x 85.0 mm x length: 143.0 mm
Weight -
3.1kg
Allowable Radical Load Bearing -
700N
Allowable Load Inertia -
0.6 kg/m2 max (Applicable Acceleration Rate: 200 r/min/s)
Withstand Voltage -
500 V AC 1 minute (between terminal and case)
Insulation Resistance -
10 MΩ (min.) (500 V DC)
