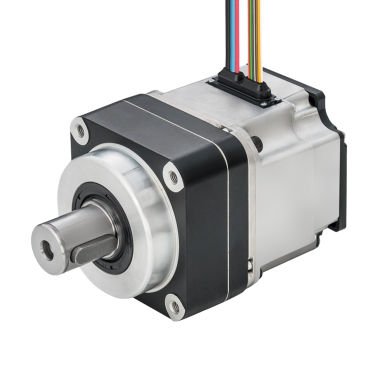

These models are IS/MS series equipped with a resolver sensor equivalent to 15-bit resolution. These motors are suitable for driving AMR/AGVs, etc. used in warehouses and factories that require stable running performance in the stop to low-speed range.
These motors are equipped with a resolver sensor with 15-bit angular resolution, enabling speed control in the range of 0-4,000 r/min and smooth running at low speeds with little rotation irregularity.
Instant Maximum Output - 320W (10sec max.)
Instant Maximum Torque - 17.2Nm (10sec max.)
Rated Voltage - 24V
Rated Output - 180W
Rated Torque - 8.6Nm
Rated Speed - 200r/min
Operating Voltage - 17-60V
Size - 85.0 mm x 85.0 mm x length: 104.5 mm
Weight - 2.5kg
Allowable Radical Load Bearing - 700N
Allowable Load Inertia - 0.6 kg/m2 max (Applicable Acceleration Rate: 200 r/min/s)
Withstand Voltage - 500 V AC 1 minute (between terminal and case)
Insulation Resistance - 10 MΩ (min.) (500 V DC)
