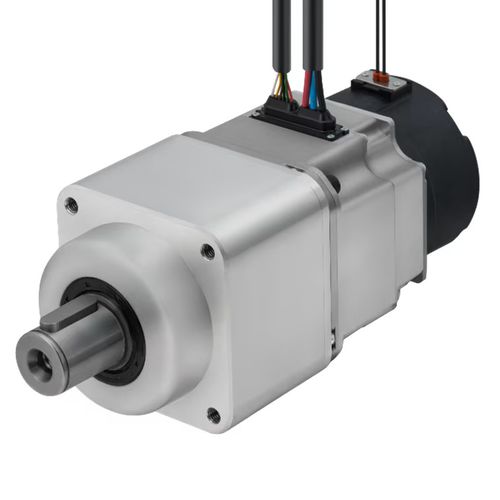

DC gear-motor MR-94BZE (Coming soon)

brushless100 W...500 W24 V

● Main Applications AGVs and AMRs, Delivery Robots, Electric Wheelchairs ● Product Features - Compact & Powerful Our brushless motors generate high output for their size. Engineered to be slim, their structure provides flexible product design. - Precise Rotational Control These motors are equipped with a resolver sensor with 15-bit angular resolution, enabling speed control in the range of 0-4,000 r/min and smooth running at low speeds with little rotation irregularity. - Robust Sensor Construction with Stable Sensing Capability In addition to the water-resistant guarantee IPX4, our unique manufacturing technology has made the sensor resistant to heat, oil, dust and vibration, allowing it to be used in harsh environments. - Geared Unit Type With planetary gear (reduction ratio 20:1). Size: 85.0 mm × 85.0 mm × Length : 125.5 mm Weight: 3.1 kg Detailed specifications and drawings can be found on our solution site. Please access the link at the top right of this article. You can also download instruction manuals and 3D drawing data from this link: https://solution.mabuchi-motor.com/en/products/mr_series/mr94bzd
