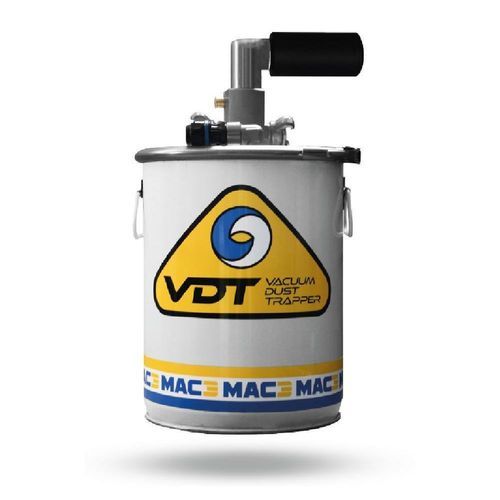

Pneumatic tool vacuum cleaner VDT

industrialdrydust

Overview The VDT (Vacuum Dust Trapper) is a vacuum cleaner for pneumatic tools, adaptable to all pneumatic pick hammers and breakers on the market. It operates solely on compressed air and provides a reliable solution to reduce the risk of occupational diseases without reducing the performance of pneumatic tools.

Highlights

• Single external energy source: pneumatic — the system connects to the compressor and is positioned between the tool and the compressor
• Universal compatibility — works with tools of all brands
• No water required — dust is captured by a machine-washable HEPA filter
• Can be positioned up to 5 meters from the tool — increased operator mobility
• Lightweight, mobile kit — easy to handle on site
• Low air consumption — a 2500 l/min compressor can operate a 25 kg MAC3 hammer together with the VDT
• Start/stop button on the VDT — independent vacuum control
• Includes silencer to reduce noise

Features

• Operates on compressed air only
• Universal system compatible with pneumatic pick hammers and breakers
• Machine-washable HEPA filter (complies with OSHA 1926.1153)
• Nomadic, lightweight design for on-site mobility
• Low air/energy consumption
• Equipped with silencer

Specifications

• Operating pressure: 6 bar (87 psi)
• Air consumption: 1 000 l/min (35 cfm)
• Tank capacity: 20 liters (5 gal)
• Connection size: 3/4"
• Filter: machine-washable HEPA filter, compliant with OSHA 1926.1153

Concept The VDT is installed between the compressor and the pneumatic tool to trap dust at the source. Its pneumatic-only operation avoids the need for electrical supply or water at the capture point; filtration is performed via the washable HEPA element. A demonstration video is available among product resources.

Technical characteristics / specifications

• Model name: VDT
• Energy source: compressed air (pneumatic)
• Operating pressure: 6 bar (87 psi)
• Air flow required: 1 000 l/min (35 cfm)
• Tank volume: 20 L (5 gal)
• Connection: 3/4"
• Filter: machine-washable HEPA filter (compliant with OSHA 1926.1153)
• Maximum distance from tool: up to 5 m
• Includes start/stop button and silencer
