Manual low pressure blaster MAC GOM 18

pressuremobile

Product overview
This turnkey rental pack provides an air abrasive blasting solution for precision work on delicate and sensitive substrates. It operates at low pressure (approx. 3.6 to 7 bar) and accepts a range of non-polluting abrasives for controlled surface treatment.

Key concept
The MAC GOM 18 rental pack is built for rental and mobile use: an intuitive, easy-to-deploy system that enables effective air abrasive operations without deep specialist skills.

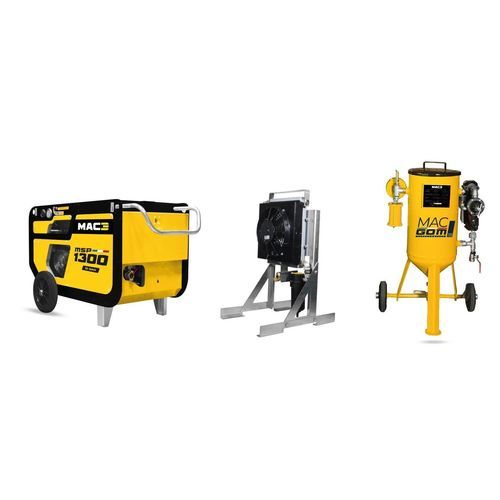

Full package

• MAC GOM 18 air eraser
  • Tungsten blasting nozzle, diameter 3.2 mm
  • Remote control and air pressure regulation system
  • Dosing valve
  • Sieve and lid
• Compressor MSP 1300 providing 1300 L/min at 7 bar
• External electrically powered cooling unit (12 V socket)
• Winch with wireless remote control
• Hoses: 5 m and 2 m

Optional

• Hydrogumming kit
• 4.8 mm tungsten carbide blast nozzle

Highlights / Benefits

• Ease of use: Designed for simple, intuitive operation without extensive training
• Adaptability: Mobile use in open environments without large enclosures; flexible for field and restoration work

Versatile applications

• Cleaning stone, marble, granite, brick and terracotta
• Rust removal from various substrates
• Precise stripping of wood and metal
• Sanding wooden beams
• Fast, efficient graffiti removal
• Removing atmospheric pollution residues to restore surfaces

Technical tables
MAC GOM 18 — Capacity / Granulometry / Dimensions / Weight
HEADER: CAPACITY | GRANULOMETRY (mm / in) | DIMENSIONS (L / W / H mm - in) | WEIGHT (kg - lb)
MODEL: MAC GOM 18 | CAPACITY: 18 L (4.75 gal) | GRANULOMETRY: 0.20–1.2 mm (0.007–0.047 in) | DIMENSIONS: 500 x 700 x 800 mm (19.68 x 27.55 x 31.49 in) | WEIGHT: 49–108 kg

Nozzle pressure & consumption (examples)
HEADER: Nozzle pressure (bar - psi) / Consumption (m3/min - cfm) for nozzle sizes
Pressure examples: 3.5 bar (51 psi); 4.2 bar (61 psi); 5.0 bar (72 psi); 5.6 bar (81 psi); 6.3 bar (91 psi); 7.0 bar (101 psi)
Consumption examples: 3.2 mm (1/8) → ~0.3 to 0.55 m3/min (11 to 19 cfm) depending on pressure; 4.8 mm (3/16) → ~0.72 to 1.25 m3/min (25 to 44 cfm) depending on pressure

MSP 1300 (compressor) — Performance and dimensions
HEADER: MODEL | PRESSURE (bar - psi) | AIR FLOW (m3/min - cfm) | WEIGHT (kg - lb) | DIMENSIONS (mm / in)
MSP 1300 7 bar | Pressure: 7 bar (100 psi) | Air flow: 1.3 m3/min (50 cfm) | Weight (skid): 210 kg (463 lb) | Skid dims: 1106 x 602 x 660 mm (43.5 x 23.7 x 26 in) | Weight (wheels): 214 kg (474 lb) | Wheel dims: 1200 x 790 x 790 mm (47.2 x 31.1 x 31.1 in)

Technical specifications

• Product: MAC GOM 18 air eraser (rental pack)
• Intended use: air abrasive blasting for delicate and sensitive substrates
• Operating pressure examples: ~3.5 to 7.0 bar depending on nozzle and application
• MAC GOM 18 capacity: 18 L
• Granulometry: 0.20–1.2 mm
• Dimensions (L x W x H): 500 x 700 x 800 mm
• Weight range: 49–108 kg depending on configuration
• Nozzle options: tungsten 3.2 mm (standard); 4.8 mm tungsten carbide (optional)
• Nozzle consumption range: ~0.3 to 1.25 m3/min depending on nozzle and pressure
• Compressor supplied: MSP 1300 (1.3 m3/min at 7 bar)
• Pack includes external cooler (12 V), winch with wireless remote, dosing valve, sieve, lid, hoses (5 m and 2 m)
