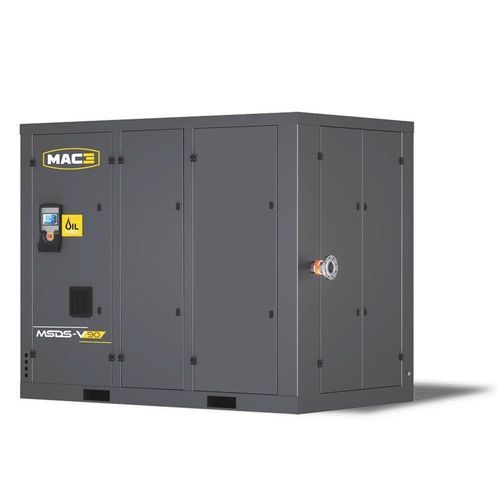

Screw compressor MSDS-V series

airelectricstationary

Overview
Range from 55 to 315 kW; models listed here cover 55–250 kW. The MSDS-V family provides 100% oil-free compressed air for industrial applications, combining two-stage compression with direct-drive efficiency.

HIGHLIGHTS

• 100% oil-free air delivery
• Two-stage screw compression
• Special rotor coating for extended operational life
• Designed for continuous efficiency
• Proven reliability

PERFORMANCES

• Rated to operate up to 45°C ambient
• High-quality, industry-grade components
• Powerful electronic controller for process control
• High performance from direct drive and IE4 motor
• Low maintenance requirements
• Robust design for extended service life

ERGONOMIC

• Rapid commissioning
• User-friendly operation
• Electronic controller with preventive maintenance features
• Accessibility for preventive service

STANDARD EQUIPMENT
Electric motor WEG

• IP55 protection, class F insulation
• IE4 efficiency

Two-stage GHH air-end

• Proven reliability and performance

SMARTRONIC PLUS electronic controller

• Alarm and preventive maintenance functions; remote control
• Master/Slave operation via serial connection
• Weekly timer
• MODBUS protocol

Direct drive

• Flexible coupling
• Bell-housing coupling protection

Premium cooling system

• Two-stage cooling
• Radial fan
• Water separators on both stages

FIELDS OF APPLICATION

• Food industry
• Electronics
• Heavy industry
• Medical and pharmaceutical
• Automotive industry
• Power generation

SPECIFICATIONS
MODEL | POWER (kW) | HP | AIR FLOW RANGE m3/min at 7.5 bar | at 8.5 bar | at 10 bar | AIR OUTLET | DIMENSIONS (LxWxH) mm | WEIGHT kg
MSDS-V 55 | 55 | 75 | 3.4 - 9.1 | 3.4 - 8.3 | 3.4 - 7.0 | 2" | 2450 x 1600 x 2160 | 2675
MSDS-V 75 | 75 | 100 | 3.4 - 12.1 | 3.4 - 11.3 | 3.4 - 10.6 | 2" | 2450 x 1600 x 2160 | 2935
MSDS-V 90 | 90 | 125 | 3.4 - 14.5 | 3.4 - 13.6 | 3.4 - 13.2 | 2" | 2450 x 1600 x 2160 | 3025
MSDS-V 110 | 110 | 150 | 3.4 - 14.5 | 10.0 - 18.2 | 10.0 - 17.0 | DN 80 | 3085 x 1825 x 2450 | 4100
MSDS-V 132 | 132 | 180 | 10.4 - 22.2 | 10.3 - 21.0 | 10.3 - 19.6 | DN 80 | 3085 x 1825 x 2450 | 4200
MSDS-V 160 | 160 | 220 | 10.0 - 26.9 | 9.8 - 25.5 | 9.8 - 23.5 | DN 80 | 3085 x 1825 x 2450 | 4000
MSDS-V 185 | 185 | 250 | 10.3 - 29.6 | 10.2 - 28.1 | 10.1 - 26.4 | DN 80 | 3085 x 1825 x 2450 | 4600
MSDS-V 200 | 200 | 270 | 18.2 - 35.0 | 18.0 - 31.4 | 17.9 - 28.5 | DN 100 | 3685 x 2140 x 2715 | 6300
MSDS-V 250 | 250 | 340 | 17.3 - 44.5 | 17.2 - 41.2 | 17.0 - 37.7 | DN 100 | 3685 x 2140 x 2715 | 6650

Technical characteristics / specifications

• Declared range on page header: 55 to 315 kW; table lists variants up to 250 kW
• Compression: two-stage oil-free screw
• Rotor: special coating for long-term operation and maintained efficiency
• Electric motor: WEG, IP55, class F insulation, IE4 efficiency
• Controller: SMARTRONIC PLUS with alarm, preventive maintenance, remote control, Master/Slave by serial connection, weekly timer, MODBUS
• Drive: direct drive with flexible coupling and bell-housing protection
• Cooling: two-stage cooling, radial fan, water separators on both stages
• Operating ambient temperature: up to 45°C
• Air outlet sizes: 2", DN 80 or DN 100 depending on model
• Dimensions and weights: see model table above
