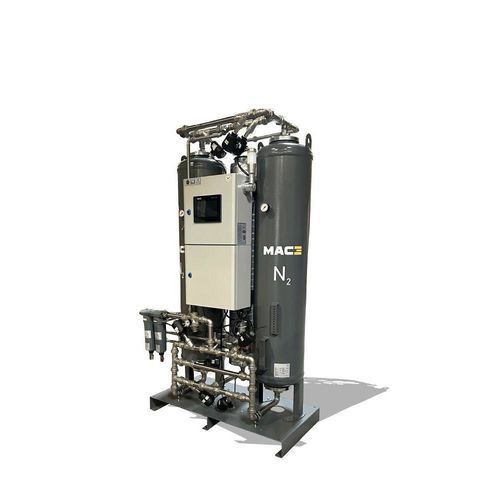

Ultra high-purity nitrogen generator MP serieshigh-purityindustrialfor the food industry
Add to favorites
Compare this product
Characteristics
- Gas characteristics
- high-purity, ultra high-purity
- Domain
- industrial, for electronics, for the food industry, for the wine industry, for the metallurgical industry
- Applications
- for laser cutting
- Technology
- PSA, molecular carbon sieve
- Other characteristics
- stainless steel
- Flow rate
Max.: 1,957.6 m³/h
(69,131.992 ft³/h)Min.: 0.65 m³/h
(22.955 ft³/h)- Output pressure
Max.: 1,000,000 Pa
(145.04 psi)Min.: 0 Pa
(0 psi)- Gas purity
Max.: 99.9999 %
Min.: 95 %
- Rated capacity
150 kW
(203.9 hp)
Description
Overview
Producing nitrogen directly on site with a MAC3 nitrogen generator means total independence and immediate availability. Generators produce nitrogen continuously, reducing costs associated with purchasing, transporting and storing nitrogen cylinders or tanks. The PSA technology used in these generators ensures high reliability, long-lasting autonomy and requires little maintenance.
The benefits
Cutting-edge technology: the PSA system
MAC3 nitrogen generators are based on the pressure swing adsorption (PSA) principle. Compressed air is filtered and pre-treated to remove impurities, then passes through a column containing a carbon molecular sieve (CMS) that traps oxygen molecules and allows nitrogen to pass through. Alternating cycles of adsorption and regeneration produce nitrogen stably and continuously with a very high level of purity.
Applications
Performance table: Nitrogen output - Nm³/h vs oxygen concentration / nitrogen purity
Nitrogen output - Nm³/h vs oxygen concentration/nitrogen purity
Residual O2 | 1 PPM | 5 PPM | 10 PPM | 50 PPM | 100 PPM | 500 PPM | 0,1 % | 0,5 % | 1,0 % | 2,0 % | 3,0 % | 5,0%
Purity N2 | 99,9999 % | 99,9995 % | 99,999 % | 99,995 % | 99,99 % | 99,95 % | 99,90 % | 99,50 % | 99 % | 98 % | 97 % | 95 %
MP01 | 0,65 | 0,75 | 0,85 | 1,15 | 1,6 | 2,0 | 2,35 | 3,4 | 4,2 | 5,5 | 6,3 | 8,0
MP02 | 1,3 | 1,5 | 1,7 | 2,3 | 3,2 | 4,0 | 4,7 | 6,8 | 8,4 | 11,0 | 12,6 | 15,8
MP03 | 2,6 | 3,0 | 3,5 | 4,6 | 6,4 | 8,0 | 9,4 | 13,6 | 16,8 | 22,0 | 25,6 | 31,6
MP04 | 3,9 | 4,5 | 5,1 | 6,9 | 9,6 | 12,0 | 14,1 | 20,4 | 25,2 | 33,0 | 37,8 | 47,4
MP05 | 5,2 | 6,0 | 6,8 | 9,2 | 12,8 | 16,0 | 18,8 | 27,2 | 33,6 | 44,0 | 50,4 | 63,2
MP06 | 6,5 | 7,5 | 8,5 | 11,5 | 16,0 | 20,0 | 23,5 | 34,0 | 42,0 | 55,0 | 63,0 | 79,0
MP07 | 9,1 | 10,5 | 12,0 | 16,2 | 22,4 | 28,0 | 32,9 | 47,6 | 58,8 | 77,0 | 88,6 | 110,6
MP08 | 12,1 | 13,5 | 16,0 | 20,7 | 28,8 | 36,0 | 42,3 | 61,2 | 75,6 | 99,0 | 114,2 | 142,1
MP09 | 14,7 | 16,5 | 20,0 | 25,3 | 35,2 | 44,0 | 51,7 | 74,8 | 92,4 | 121,0 | 139,8 | 173,7
MP10 | 17,3 | 19,5 | 24,0 | 29,9 | 41,6 | 52,0 | 61,1 | 88,4 | 109,4 | 143,0 | 165,4 | 205,2
MP11 | 19,9 | 22,5 | 28,0 | 34,5 | 48,0 | 60,0 | 70,4 | 102,0 | 126,2 | 165,0 | 191,0 | 236,7
MP12 | 22,5 | 25,5 | 32,0 | 39,1 | 54,4 | 68,0 | 79,4 | 115,6 | 143,0 | 187,0 | 216,6 | 268,2
MP13 | 29,0 | 33,0 | 40,5 | 50,6 | 70,4 | 88,0 | 102,9 | 149,6 | 185,0 | 242,0 | 279,6 | 347,2
MP14 | 38,1 | 43,5 | 52,5 | 62,1 | 92,8 | 116,0 | 135,8 | 197,2 | 243,8 | 319,0 | 368,2 | 457,8
MP15 | 47,2 | 57,0 | 68,5 | 82,8 | 121,6 | 152,0 | 178,1 | 258,4 | 319,4 | 418,0 | 482,4 | 599,9
MP16 | 59,1 | 70,5 | 84,5 | 103,5 | 150,4 | 188,0 | 220,4 | 319,6 | 395,0 | 517,0 | 596,6 | 742,1
MP17 | 71,4 | 34,0 | 100,5 | 124,2 | 179,2 | 224,0 | 262,7 | 380,8 | 470,6 | 616,0 | 710,8 | 884,1
MP18 | 83,5 | 97,5 | 116,5 | 144,9 | 208,0 | 260,0 | 305,0 | 442,0 | 546,2 | 715,0 | 825,0 | 1026,2
MP19 | 95,6 | 111,0 | 132,5 | 165,6 | 236,8 | 296,0 | 347,3 | 503,0 | 621,8 | 814,0 | 939,2 | 1168,3
MP20 | 110,3 | 127,5 | 152,5 | 190,7 | 272,0 | 340,0 | 399,0 | 578,0 | 714,2 | 935,0 | 1079,0 | 1342,0
MP21 | 125,0 | 150,0 | 180,5 | 225,4 | 313,6 | 392,0 | 469,4 | 664,4 | 823,6 | 1100,0 | 1244,4 | 1547,2
MP22 | 144,9 | 172,5 | 208,5 | 259,9 | 355,2 | 444,0 | 539,8 | 754,8 | 933,0 | 1265,0 | 1409,8 | 1752,4
MP23 | 163,9 | 194,5 | 236,5 | 294,4 | 396,8 | 496,0 | 610,2 | 843,2 | 1042,4 | 1430,0 | 1575,2 | 1957,6
Operating conditions and correction factors
Input temperature range: 5-50 °C
Air inlet pressure: 5-11 bar g
Nitrogen outlet pressure: Up to 10 bar g
Air intake requirement: ISO 8573.1:2010 (class 1.4.1)
Inlet pressure correction factor (per bar g):
5 bar g | 0,75; 6 bar g | 0,83; 7 bar g | 0,91; 8 bar g | 1,00; 9 bar g | 1,13; 10 bar g | 1,19; 11 bar g | 1,22
Air inlet temperature correction factor (per °C):
5°C | 0,85; 10°C | 1,03; 15°C | 1,02; 20°C | 1,00; 25°C | 0,93; 30°C | 0,95; 35°C | 0,80; 40°C | 0,72; 45°C | 0,60; 50°C | 0,52
Models - Dimensions / Weight / Air inlet fittings / Electrical power
Model | Dimensions (W*L*H) mm | Weight (kg) | Air inlet fittings size BSP Female | Electrical power / Power consumption
MP01 | 520 x 400 x 1145 | 45 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP02 | 550 x 400 x 1400 | 85 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP03 | 600 x 450 x 1620 | 120 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP04 | 800 x 500 x 1500 | 165 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP05 | 800 x 500 x 1700 | 200 | 3/4" | 230 V AC 50-60 Hz / 150 W
MP06 | 800 x 500 x 1700 | 290 | 1" | 230 V AC 50-60 Hz / 150 W
MP07 | 1180 x 650 x 1980 | 390 | 1" | 230 V AC 50-60 Hz / 150 W
MP08 | 1200 x 650 x 1935 | 485 | 1" | 230 V AC 50-60 Hz / 150 W
MP09 | 1200 x 650 x 2125 | 575 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP10 | 1250 x 750 x 2100 | 680 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP11 | 1400 x 700 x 1960 | 760 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP12 | 1500 x 700 x 2100 | 960 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP13 | 1600 x 750 x 2210 | 1200 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP14 | 1750 x 1000 x 2150 | 1600 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP15 | 1750 x 1000 x 2300 | 2000 | 2" | 230 V AC 50-60 Hz / 150 W
MP16 | 1820 x 1020 x 2380 | 2300 | 2" | 230 V AC 50-60 Hz / 150 W
MP17 | 1750 x 1020 x 2450 | 2700 | 2" | 230 V AC 50-60 Hz / 150 W
MP18 | 1950 x 1140 x 2300 | 3150 | 2 1/2" | 230 V AC 50-60 Hz / 150 W
MP19 | 1500 x 1740 x 2465 | 3685 | 2 1/2" | 230 V AC 50-60 Hz / 150 W
MP20 | 1680 x 1970 x 2300 | 4275 | 3" | 230 V AC 50-60 Hz / 150 W
MP21 | 1780 x 2170 x 2300 | 5000 | 3" | 230 V AC 50-60 Hz / 150 W
MP22 | 2000 x 2220 x 2350 | 5700 | 3" | 230 V AC 50-60 Hz / 150 W
MP23 | 2200 x 2320 x 2340 | 7000 | 3" | 230 V AC 50-60 Hz / 150 W
Characteristics / Technical specifications
Producing nitrogen directly on site with a MAC3 nitrogen generator means total independence and immediate availability. Generators produce nitrogen continuously, reducing costs associated with purchasing, transporting and storing nitrogen cylinders or tanks. The PSA technology used in these generators ensures high reliability, long-lasting autonomy and requires little maintenance.
The benefits
- SIEMENS PLC with touch screen for intuitive visualization
- Real-time display of nitrogen purity
- Automatic start and stop according to consumption
- Integrated homogenizing tank for optimum performance
- O₂ zirconium probe for precise control
- Stainless steel piping for enhanced durability
- Inlet filtration for longer system life
Cutting-edge technology: the PSA system
MAC3 nitrogen generators are based on the pressure swing adsorption (PSA) principle. Compressed air is filtered and pre-treated to remove impurities, then passes through a column containing a carbon molecular sieve (CMS) that traps oxygen molecules and allows nitrogen to pass through. Alternating cycles of adsorption and regeneration produce nitrogen stably and continuously with a very high level of purity.
Applications
- LASER CUTTING
- AGRI-FOOD
- CHEMISTRY AND PHARMACY
- METAL TREATMENT
- ELECTRONICS AND PLASTICS
Performance table: Nitrogen output - Nm³/h vs oxygen concentration / nitrogen purity
Nitrogen output - Nm³/h vs oxygen concentration/nitrogen purity
Residual O2 | 1 PPM | 5 PPM | 10 PPM | 50 PPM | 100 PPM | 500 PPM | 0,1 % | 0,5 % | 1,0 % | 2,0 % | 3,0 % | 5,0%
Purity N2 | 99,9999 % | 99,9995 % | 99,999 % | 99,995 % | 99,99 % | 99,95 % | 99,90 % | 99,50 % | 99 % | 98 % | 97 % | 95 %
MP01 | 0,65 | 0,75 | 0,85 | 1,15 | 1,6 | 2,0 | 2,35 | 3,4 | 4,2 | 5,5 | 6,3 | 8,0
MP02 | 1,3 | 1,5 | 1,7 | 2,3 | 3,2 | 4,0 | 4,7 | 6,8 | 8,4 | 11,0 | 12,6 | 15,8
MP03 | 2,6 | 3,0 | 3,5 | 4,6 | 6,4 | 8,0 | 9,4 | 13,6 | 16,8 | 22,0 | 25,6 | 31,6
MP04 | 3,9 | 4,5 | 5,1 | 6,9 | 9,6 | 12,0 | 14,1 | 20,4 | 25,2 | 33,0 | 37,8 | 47,4
MP05 | 5,2 | 6,0 | 6,8 | 9,2 | 12,8 | 16,0 | 18,8 | 27,2 | 33,6 | 44,0 | 50,4 | 63,2
MP06 | 6,5 | 7,5 | 8,5 | 11,5 | 16,0 | 20,0 | 23,5 | 34,0 | 42,0 | 55,0 | 63,0 | 79,0
MP07 | 9,1 | 10,5 | 12,0 | 16,2 | 22,4 | 28,0 | 32,9 | 47,6 | 58,8 | 77,0 | 88,6 | 110,6
MP08 | 12,1 | 13,5 | 16,0 | 20,7 | 28,8 | 36,0 | 42,3 | 61,2 | 75,6 | 99,0 | 114,2 | 142,1
MP09 | 14,7 | 16,5 | 20,0 | 25,3 | 35,2 | 44,0 | 51,7 | 74,8 | 92,4 | 121,0 | 139,8 | 173,7
MP10 | 17,3 | 19,5 | 24,0 | 29,9 | 41,6 | 52,0 | 61,1 | 88,4 | 109,4 | 143,0 | 165,4 | 205,2
MP11 | 19,9 | 22,5 | 28,0 | 34,5 | 48,0 | 60,0 | 70,4 | 102,0 | 126,2 | 165,0 | 191,0 | 236,7
MP12 | 22,5 | 25,5 | 32,0 | 39,1 | 54,4 | 68,0 | 79,4 | 115,6 | 143,0 | 187,0 | 216,6 | 268,2
MP13 | 29,0 | 33,0 | 40,5 | 50,6 | 70,4 | 88,0 | 102,9 | 149,6 | 185,0 | 242,0 | 279,6 | 347,2
MP14 | 38,1 | 43,5 | 52,5 | 62,1 | 92,8 | 116,0 | 135,8 | 197,2 | 243,8 | 319,0 | 368,2 | 457,8
MP15 | 47,2 | 57,0 | 68,5 | 82,8 | 121,6 | 152,0 | 178,1 | 258,4 | 319,4 | 418,0 | 482,4 | 599,9
MP16 | 59,1 | 70,5 | 84,5 | 103,5 | 150,4 | 188,0 | 220,4 | 319,6 | 395,0 | 517,0 | 596,6 | 742,1
MP17 | 71,4 | 34,0 | 100,5 | 124,2 | 179,2 | 224,0 | 262,7 | 380,8 | 470,6 | 616,0 | 710,8 | 884,1
MP18 | 83,5 | 97,5 | 116,5 | 144,9 | 208,0 | 260,0 | 305,0 | 442,0 | 546,2 | 715,0 | 825,0 | 1026,2
MP19 | 95,6 | 111,0 | 132,5 | 165,6 | 236,8 | 296,0 | 347,3 | 503,0 | 621,8 | 814,0 | 939,2 | 1168,3
MP20 | 110,3 | 127,5 | 152,5 | 190,7 | 272,0 | 340,0 | 399,0 | 578,0 | 714,2 | 935,0 | 1079,0 | 1342,0
MP21 | 125,0 | 150,0 | 180,5 | 225,4 | 313,6 | 392,0 | 469,4 | 664,4 | 823,6 | 1100,0 | 1244,4 | 1547,2
MP22 | 144,9 | 172,5 | 208,5 | 259,9 | 355,2 | 444,0 | 539,8 | 754,8 | 933,0 | 1265,0 | 1409,8 | 1752,4
MP23 | 163,9 | 194,5 | 236,5 | 294,4 | 396,8 | 496,0 | 610,2 | 843,2 | 1042,4 | 1430,0 | 1575,2 | 1957,6
Operating conditions and correction factors
Input temperature range: 5-50 °C
Air inlet pressure: 5-11 bar g
Nitrogen outlet pressure: Up to 10 bar g
Air intake requirement: ISO 8573.1:2010 (class 1.4.1)
Inlet pressure correction factor (per bar g):
5 bar g | 0,75; 6 bar g | 0,83; 7 bar g | 0,91; 8 bar g | 1,00; 9 bar g | 1,13; 10 bar g | 1,19; 11 bar g | 1,22
Air inlet temperature correction factor (per °C):
5°C | 0,85; 10°C | 1,03; 15°C | 1,02; 20°C | 1,00; 25°C | 0,93; 30°C | 0,95; 35°C | 0,80; 40°C | 0,72; 45°C | 0,60; 50°C | 0,52
Models - Dimensions / Weight / Air inlet fittings / Electrical power
Model | Dimensions (W*L*H) mm | Weight (kg) | Air inlet fittings size BSP Female | Electrical power / Power consumption
MP01 | 520 x 400 x 1145 | 45 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP02 | 550 x 400 x 1400 | 85 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP03 | 600 x 450 x 1620 | 120 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP04 | 800 x 500 x 1500 | 165 | 1/2" | 230 V AC 50-60 Hz / 150 W
MP05 | 800 x 500 x 1700 | 200 | 3/4" | 230 V AC 50-60 Hz / 150 W
MP06 | 800 x 500 x 1700 | 290 | 1" | 230 V AC 50-60 Hz / 150 W
MP07 | 1180 x 650 x 1980 | 390 | 1" | 230 V AC 50-60 Hz / 150 W
MP08 | 1200 x 650 x 1935 | 485 | 1" | 230 V AC 50-60 Hz / 150 W
MP09 | 1200 x 650 x 2125 | 575 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP10 | 1250 x 750 x 2100 | 680 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP11 | 1400 x 700 x 1960 | 760 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP12 | 1500 x 700 x 2100 | 960 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP13 | 1600 x 750 x 2210 | 1200 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP14 | 1750 x 1000 x 2150 | 1600 | 1 1/2" | 230 V AC 50-60 Hz / 150 W
MP15 | 1750 x 1000 x 2300 | 2000 | 2" | 230 V AC 50-60 Hz / 150 W
MP16 | 1820 x 1020 x 2380 | 2300 | 2" | 230 V AC 50-60 Hz / 150 W
MP17 | 1750 x 1020 x 2450 | 2700 | 2" | 230 V AC 50-60 Hz / 150 W
MP18 | 1950 x 1140 x 2300 | 3150 | 2 1/2" | 230 V AC 50-60 Hz / 150 W
MP19 | 1500 x 1740 x 2465 | 3685 | 2 1/2" | 230 V AC 50-60 Hz / 150 W
MP20 | 1680 x 1970 x 2300 | 4275 | 3" | 230 V AC 50-60 Hz / 150 W
MP21 | 1780 x 2170 x 2300 | 5000 | 3" | 230 V AC 50-60 Hz / 150 W
MP22 | 2000 x 2220 x 2350 | 5700 | 3" | 230 V AC 50-60 Hz / 150 W
MP23 | 2200 x 2320 x 2340 | 7000 | 3" | 230 V AC 50-60 Hz / 150 W
Characteristics / Technical specifications
- Technology: Pressure Swing Adsorption (PSA) with Carbon Molecular Sieve (CMS)
- Compressed air filtering and pre-treatment to remove impurities
- Siemens PLC with touchscreen for visualization and control
- Real-time nitrogen purity display and O₂ zirconium probe for precise measurement
- Automatic start/stop based on consumption
- Integrated homogenizing tank to stabilize flow and performance
- Stainless steel piping and inlet filtration for longer system life and durability
- Air intake requirement: ISO 8573.1:2010 class 1.4.1
- Operating ambient / inlet temperature range: 5 °C to 50 °C
- Air inlet pressure: 5 to 11 bar g (correction factors provided)
- Nitrogen outlet pressure: up to 10 bar g
- Electrical: 230 V AC 50-60 Hz; control power approx. 150 W (model-dependent)
- Available model range: MP01 to MP23 (MP series) covering outputs from 0.65 to 195.7 Nm³/h depending on required purity
