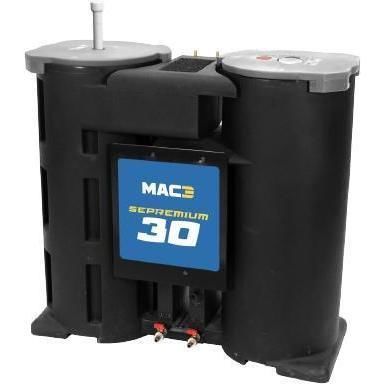

Condensate separator SEPREMIUM series

decantationfor water treatmentfor air compressors

Overview
Oil-water separators are used with lubricated compressed-air compressors (e.g. screw compressors) to remove traces of oil from condensate. The treated condensate meets environmental requirements by separating and adsorbing the oil content.

The benefits

• Residual oil capacity between 5 and 10 ppm
• Compatible with all condensate drain types
• Element life visual indicator
• Compatible with mineral or synthetic lubricants
• Compact footprint with capacities up to 3600 m3/h
• Overflow indicator
• No settling tank, limiting bacterial development

Models and specification (table)
MODEL | COMPRES. CAPACITY (m3/min) | MAX. OIL ADSORPTION (L) | Input/Inlet | Output/Outlet | DIMENSIONS (L x W x H) mm
SEPREMIUM 2 | 2 | 2 | 1/2" | 1/2" | 270 x 240 x 250
SEPREMIUM 3.5 | 3.5 | 4 | 1/2" | 1/2" | 396 x 240 x 385
SEPREMIUM 5 | 5 | 5 | 1/2" | 1" | 580 x 190 x 610
SEPREMIUM 10 | 10 | 10 | 1/2" | 1" | 650 x 240 x 750
SEPREMIUM 20 | 20 | 15 | 1/2" | 1" | 780 x 305 x 900
SEPREMIUM 30 | 30 | 25 | 1/2" | 1" | 970 x 380 x 900
SEPREMIUM 60 | 60 | 50 | 1/2" | 1" | 1160 x 480 x 1040

Technical characteristics / specifications

• Function: oil-water (condensate) separation for lubricated compressors (e.g. screw compressors)
• Residual oil after treatment: between 5 and 10 ppm
• Compatibility: works with all condensate drain types; compatible with mineral and synthetic lubricants
• Indicators: visual element life indicator; overflow indicator
• Design: no settling tank to reduce risk of bacterial development
• Footprint: compact design with capacities up to 3600 m3/h (model-dependent)
• Available models and flow capacities: SEPREMIUM 2 / 3.5 / 5 / 10 / 20 / 30 / 60
• Oil adsorption capacity per model (L): 2 / 4 / 5 / 10 / 15 / 25 / 50
• Connections: inlet and outlet 1/2" or 1" depending on model
• Dimensions (L x W x H in mm): see table above
