Air compressor MSH Macfarmer

hydraulic motormobilefor agricultural applications

Overview

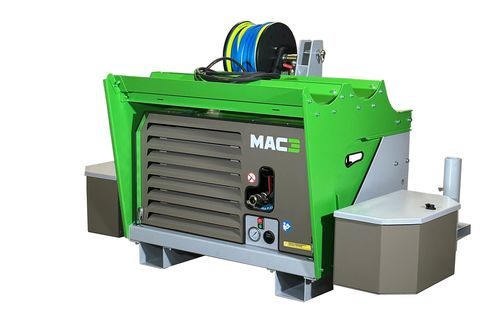

The MSH MAC-FARMER is a hydraulically driven site air compressor specifically developed for agricultural work. Designed to be mounted on the tractor three-point hitch, it supplies on-board compressed air for cleaning, pneumatic tools and other field operations. Developed by specialized engineers in collaboration with farmers and agricultural equipment professionals, the unit aims to provide availability of compressed air, simplified logistics and reduced maintenance requirements.

Key uses

• Dry cleaning of machinery and crop residues
• Transport and supply of pneumatic tools
• Operation of pneumatic tools (grinders, impact wrenches, blowguns)
• Pipe purging and blowing
• Projection and other pneumatic operations
• Inflating (tyres, balloons, inflatable devices)

Benefits

• Optimized return on investment for agricultural use: low initial investment and reduced maintenance costs; compressed air available directly on the tractor for shorter service trips.
• Low carbon footprint: French design and manufacture favoring local sourcing; hydraulic drive produces no direct exhaust gases.
• Reliability and durability: MAC3 design optimizes performance and life expectancy; hydraulic drive reduces wear and does not require an auxiliary engine.
• Ergonomics: tractor-mounted configuration for immediate availability and versatile use across tasks.

Configuration and options
Standard delivery includes a chassis with integrated forklift pockets for easy handling. Available options include:

• Reel with 20 m compressed-air hose
• Net-roll or baler-twine support
• Two 20 L storage chests
• Wrap-net support
• Automatic calibration

Connection (only for rear mounting on tractor)

• Mechanical connection: 3-point hitch (categories 2, 3N and 3*)
• Hydraulic connection: standard ISO A 1/2" hydraulic coupling
• Electrical connection: 3-pin socket, 12 V, 25 A

Technical data (table)
Maximum air flow at 7 bar (100 psi): 2500 L/min
Hydraulic flow required: 80 L/min
Hydraulic pressure: 190 bar

Size and weight
Weight (compressor without options): 311 kg (685 lb)
Dimensions (L × W × H) without options: 990 × 639 × 900 mm

Why clean equipment with MSH MAC-FARMER
Using compressed air allows fast, effective removal of dust and debris to reduce fire risk, prolong the life of agricultural machines by limiting moisture and rust, simplify maintenance by avoiding water use and help limit weed transfer between plots.

Technical specifications

• Air flow at 7 bar: 2500 L/min
• Hydraulic flow required: 80 L/min
• Hydraulic pressure: 190 bar
• Mechanical connection: 3-point hitch (cat. 2, 3N, 3*)
• Hydraulic coupling: ISO A 1/2"
• Electrical connection: 3-pin socket, 12 V / 25 A
• Weight (no options): 311 kg
• Dimensions (L×W×H): 990 × 639 × 900 mm
• Standard supply: chassis with forklift pockets
• Options: 20 m hose reel; net-roll / baler-twine support; two 20 L storage chests; wrap-net support; automatic calibration
