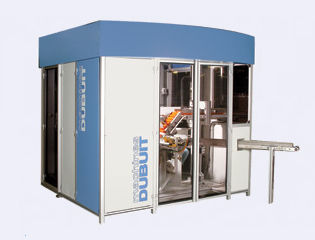

Automatic screen printing machine 932 series
four-colorfor cylindrical productsflat bed

automatic screen printing machine
automatic screen printing machine
Add to favorites
Compare this product


Characteristics

Control
automatic
Number of colors
four-color
Other characteristics
for cylindrical products, flat bed

Description

The main functions of the machine 932 (surface treatment, registration, printing heads, UV dryers) are all linked to a single frame adjustable in height by a motor. Adjustment is achieved in one operation with NO tool (screen off contact, object diameter) through the machine touch screen. The machine 932 meets the requirements of the most demanding users : - Quick change over : 12 identical jigs, one infeed turret Quick mount pin registered magnetic screens and memorized job setting. - Quality : printing up to 4 colors, perfect UV drying even at the highest output. - Efficiency and precision : mechanical or optical registration for object positioning, registration to previous prints by camera. - Versatile : maximum diameter up to 120 mm. - Robust and durable : fully mechanical with numerical control adjustments. Numerous options available: lacquering, sleeves, capping, double production, camera registration, camera inspection.
