Grease greasing system MINILUBE®

for high-pressure applicationscompactmanual

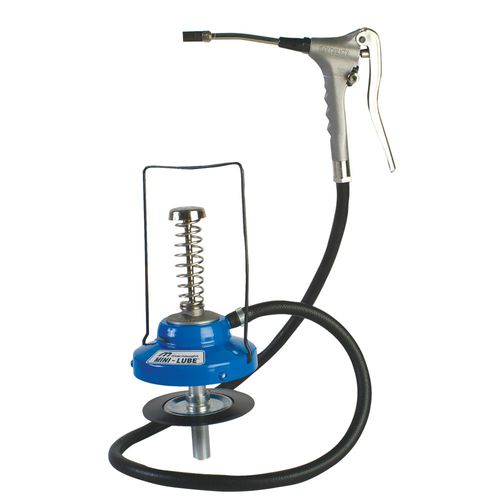

The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems. Technical Specifications High volume delivery pressure up to 34,450kPa (5,000psi) High pressure delivery pressure up to 68,900kPa (10,000psi) Provides up to 30 shots of grease with each prime KY SUPERGRIP™ 3 jaw high pressure coupler Up to 0.45g per shot (High pressure setting) Up to 1.25g per shot (High volume setting) Maximum viscosity - Up to NLGI 2 Compatible with 2.5kg grease containers for contamination free greasing or bulk fill via a J3 Transfer Pump Wetted parts - Aluminium, steel, nitrile rubber Features & Benefits Compatible with 2.5kg containers Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure. Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment. Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application. Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
