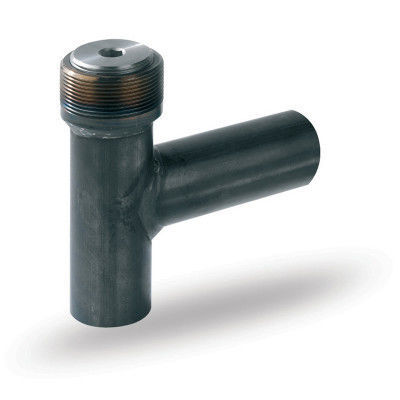

T-shaped tube connector 138

steel

TEE terminal for tapping TEE saddles. It is used on medium pressure gas systems for type IV pipelines (up to 5 bar). - Materials: - Carbon steel tubing according to ISO 3183/API 5L, raw. - Threaded steel manifold ASTM A105. - Steel closing cap ASTM A105 with double VITON sealing o-ring. - Technical notes: - Weldable inlet and outlet connection. - Standards: - UNI EN 1555-3 - ISO 4437-3 - UNI EN ISO 228-1 - Dimensional Table: - Reference: 1380000025, DN (inch): 1", DN (mm): 25, L (mm): 97, H (mm): 140, Weight (kg): 1.00 - Reference: 1380000032, DN (inch): 1 1/4", DN (mm): 32, L (mm): 102, H (mm): 150, Weight (kg): 1.50 - Reference: 1380000040, DN (inch): 1 1/2", DN (mm): 40, L (mm): 104, H (mm): 160, Weight (kg): 1.70 - Reference: 1380000050, DN (inch): 2", DN (mm): 50, L (mm): 115, H (mm): 170, Weight (kg): 2.50 - Reference: 1380000065, DN (inch): 2 1/2", DN (mm): 65, L (mm): 138, H (mm): 200, Weight (kg): 4.00 - Reference: 1380000080, DN (inch): 3", DN (mm): 80, L (mm): 155, H (mm): 210, Weight (kg): 6.10 - Reference: 1380000100, DN (inch): 4", DN (mm): 100, L (mm): 182, H (mm): 230, Weight (kg): 8.50 - Article: 138 - Application: COMBUSTIBLE GAS use - MOP: 5 bar - Minimum purchase order quantity: 1 - Technical characteristics / specifications: - For medium pressure gas systems (up to 5 bar) - Weldable inlet and outlet connection - Materials: Carbon steel tubing (ISO 3183/API 5L), Threaded steel manifold (ASTM A105), Steel closing cap (ASTM A105) with double VITON sealing o-ring - Standards: UNI EN 1555-3, ISO 4437-3, UNI EN ISO 228-1 - Available sizes: DN (inch): 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4; DN (mm): 25, 32, 40, 50, 65, 80, 100 - Weight range: 1.00 kg to 8.50 kg
