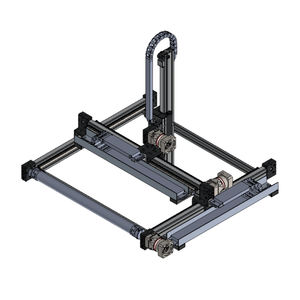

Gantry robot MGS-HBG-252-axishigh-speed
Add to favorites
Compare this product
Characteristics
- Type
- gantry
- Number of axes
- 2-axis
- Other characteristics
- high-speed
- Payload
50 lb
(22.68 kg)- Reach
Min.: 250 mm
(9.84 in)Max.: 2,000 mm
(78.74 in)
Description
*H-Bot configuration
*High speed, high performance 2 axis Cartesian robot
*Simple design: One single belt drives both axes
*Two fixed motor mounting locations
*Fixed motors reduce load, cable management and inertia requirements
*Positional repeatability +/- .05 mm
*Sealed linear profile rail and bearing guidance
*Low profile
*Mounting flexibility in either horizontal or vertical orientation
*Configuration:X / Y
