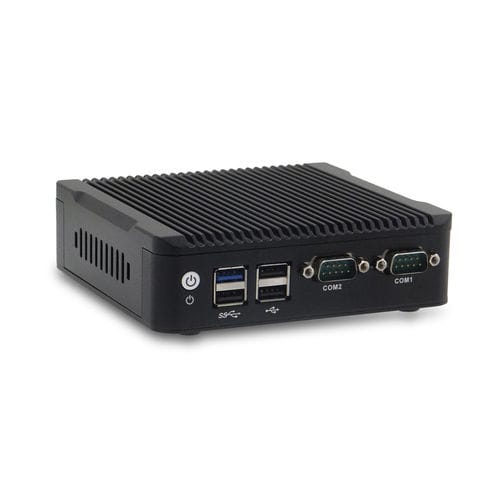

Box PC BCE0704

embeddedBay Trail-DVGA

High Performance Fanless Embedded System Mini size, Multi-interface Intel Celeron J1900 Quad Core 2.0GHz 1 x mSATA, 1 x Mini - PCIE, Support Wifi 2 x RTL8111E 1000M LAN Card, Support Wake On LAN Support dual system (Windows7/ 8.1/ 10 + Linux) Applications: Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc. CPU - Intel Bay Trail-D Quad Core J1900 Intel Celeron Quad Core N3160 (optional) BIOS - AMI 64M DPI Flash ROM Chipset - Intel Express Chipset RAM - 4GB SO-DIMM DDR3L, 1333/1600 MHz 1.35V Display - Integrated Intel HD Graphic Card, Support 1 x VGA Expansion - 2 x Mini-PCIE, Support Full-Size mSATA and Half - Size Wifi Storage - 64GB SSD Audio - Integrated Realted ALC662 6 Sound Channel Network - 2 x Realtek 8111E LAN, Support Wake On LAN Rear I/O - 2 x RJ-45 1 x 12V DC input 1 x VGA 1 x HDMI 1 x Audio Front I/O - 1 x USB 3.0 3 x USB 2.0 1 x Power Switch 2 x RS232 COM System - Windows7/ 8.1/ 10 + Linux (optional) Power - DC 12V AC Adaptor Dimensions - 134mm(L) x 126mm(W) x 38mm(H) Weight - 0.65 kg Warranty - 2 year
