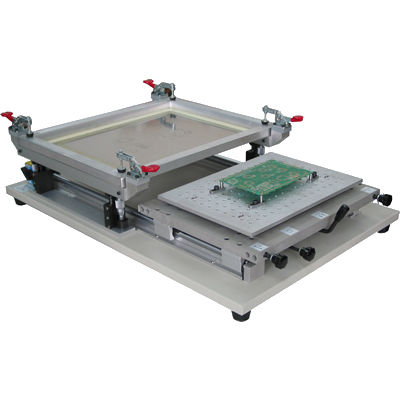

Manual screen printing machine QSY3401monochromefor electronicsflat bed
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Number of colors
- monochrome
- Applications
- for electronics
- Other characteristics
- flat bed
Description
Function Characteristic
Screen or stencil print for IC pitch= 0.3mm .
1. X , Y , Z , θ can be adjusted;
2. Synchronously disengage stencil;
3. Have many orientation mode;
4. Have highly regulative precision;
5. Repetitious error is small;
6.That stencil is mounted is easy;
7. Figuration is nice, material is good, and operation is simple
Technology Parameter
1.Outline Dimensions: 740mm x 500mm x 250mm ;
2.Adjust Range: X is 0 ~ 10mm , Y is 0 ~ 10mm , Z is 0 ~ 10mm , θ is ±2o;
3.Adjust precision: = 0.01mm ;
4.Repeat error: = 0.03mm ;
5.Stencil size: = 360mm x 260mm ;
6.PCB size: = 300mm x 220mm .
