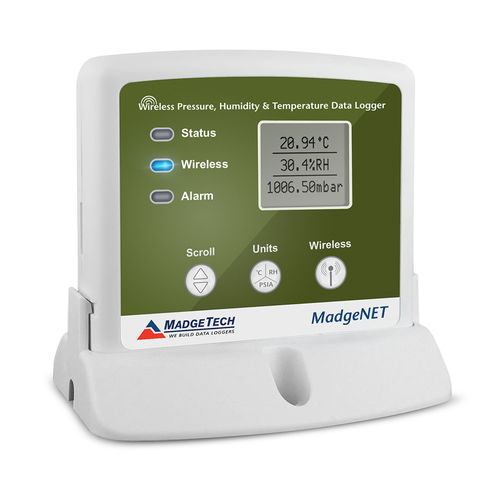

Humidity data-logger RFPRHTemp2000A

pressuretemperaturewireless

Overview
The RFPRHTemp2000A is a wireless data logger for pressure, humidity and temperature monitoring. It features an LCD that displays current, minimum, maximum and average readings. User-programmable alarms notify via email or SMS when thresholds are exceeded. Compatible with MadgeTech 4 Software for start/stop/download and supports MadgeTech Cloud Services for remote access. Note: RFC1000 wireless interface required.

Key Features

• Digital LCD display with current/min/max/average
• Continuous wireless monitoring
• Configurable alarms and email/SMS notifications
• Compatible with MadgeTech 4 Software
• MadgeTech Cloud Services ready

Technical Specifications

• General: Memory: 10,752 readings (all channels enabled); Reading Rate: 1 s to 24 h; Baud Rate: 250,000; LED Functionality:
  • Green LED blinks every 5 seconds to indicate logging
  • Blue LED blinks every 15 seconds to indicate wireless mode
  • Red LED blinks every 1 second to indicate alarm condition
  ; Battery Life: 5 years typical at 15 min reading rate; Material: ABS plastic; Dimensions: 76.2 mm x 88.9 mm x 24.1 mm (data logger only); IP Rating: IP22; Operating Environment: -20 °C to +60 °C, 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA; Required Interface Package: RFC1000; Approvals: FCC, IC, CE, KCC, CMIIT, LCIE
• Temperature: Sensor: RTD; Range: -20 °C to +60 °C; Resolution: 0.01 °C; Calibrated Accuracy: ±0.5 °C (+5 °C to +55 °C)
• Pressure: Sensor: Silicon; Range: 250 mbar to 1300 mbar; Resolution: 0.02 mbar; Calibrated Accuracy: 10 mbar (+5 °C to +55 °C)
• Wireless: RF Baud Rate: 250,000; Output Power: +0 dBm typical; Receiver Sensitivity: -95 dBm typical; Line-of-sight Range: Up to 2000 ft outdoors, up to 500 ft indoors
